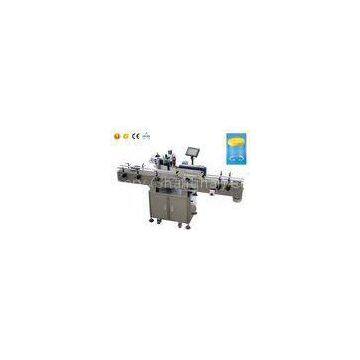

Omron detect magic eye automatic round bottle sticker labeling machine with date printer

Features ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?? ? ?

Application:

The labeling Machine is suitable for all kinds of cylindrical objects, such as glass bottles, Plastic bottles. (The machine also can be customized for cone objects)

Client can choose to add screw bottle separator or coding machine.

It can work separately or connecting with conveyor to work with other equipment.

Technical Parameters:

■ Size of Machine:? 2000(L)×1000(W)×1300(H)mm

■Labeling Speed: 20-200pcs/min (Depend on the length of label and diameter of bottle)

■ Height of Object:? 30-280mm

■ Diameter of object:? 30-120mm?

■ Height of Label: 15-140mm

■ Length of Label: 25-300mm

■ Accuracy of Labeling: ±1mm (excluding the error of bottle and label)

■Inside diameter of Label roller: 76mm

■Outside diameter of Label roller: 380mm

■ Power Supply: 220V1.5HP 50/60HZ (if power supply different, a transformer is needed)

■ Air consumption of Printer: 5Kg/cm2 (if use the coding machine)

■Weight of Machine: 150Kg

Option:

■ screw rod bottle separator

■ coding machine

■ transparent label monitor

Quotation:

??? FOB Shanghai USD5,850/set (with coding machine) ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

? ? If the sticker is transparent, the extra cost is USD520.(PS: The quotation above is just for??????? reference, the final price will depend on the order quantity, delivery time, payment term and so????? on. Sometimes, it may have a 10 percent discount.)

Competitive Advantage:

After test the machine for you,we will send the whole machine by ship or other ways you want, which means you even have no need to reassemble the machine, just move to the factory, and press the switch button, it will work well.

We have professional English/Spanish/Japanese/Korean/Portuguese/French salesman, if any problem after you received you machine, we will go through with you all the time.

Our Services

1. Offer you professional labeling sulution according to your specific labeling? requirements.

2. Supply you high quality labeling machine after placing order.

3. Try to make the delivery time as short to meet your needs.

4. Provide you lifelong free technial support after you receiving our machine.
