Home > Products > Self Propelled Scissor Lift > Hydraulic Self Propelled Scissor Lift Aerial Working Safe Loading 230KG Max 8m

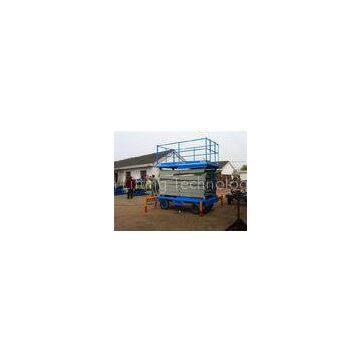

Hydraulic Self Propelled Scissor Lift Aerial Working Safe Loading 230KG Max 8m
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Flexible Material Handling All Terrain Scissor Lift Access Platform 10m
-
Fully Proportional Control Heavy Duty Scissor Lift Aerial Installation / Construction
-
230Kg Adjustable Single Portable Pneumatic Self -Propelled Scissor Lift Four Wheel
-
5000mm Height Stationary Hydraulic scissor lift table 5000Kg for Work Shop / Theatre
-
Q345 B Cargo Hoist Black Castor Wheels Pneumatic Lift Table 2000Kg Loading
-
5000Kg Loading Hydraulic Cargo Lift Table With Gas Shield Welding
Product Details
Brand Name | WORTHSUN | Place of Origin | China | |
Model Number | WS |
Product Description
Certification:CE ISO
Description:
This self-propelled lifts are widely used as they can travel in any status whether it is?lifting?or lowering.?With hyraulic motor driving, it needs no human power to pull or push it around and It can be operated by one single to control?on the platform, smart, flexible, quick. Besides, their large loading capacity made them competent to assit in finish kinds?of?aerial work tasks in various situations.They can hold more loading and reach further with extensible platform. Compare to normal scissor lift, it is with more inteligent and convenient function.
Parameters
Load capacity |
230kg |
Exension load capacity |
113kg |
Max Worker number |
2 |
Working height |
7.8m |
Platform floor height |
5.8m |
Measurement |
1.81*0.76*1.82m |
Extension platform size |
1.67*0.74m |
Ground clearance(stowed) |
0.09m |
Ground clearance(raised) |
0.019m |
Wheel base | 1.36m |
Turning Radius(inside) |
0m |
Turning Radius(outside) |
1.64m |
Lifting / drive motor | 24V/3.3W |
Travelling speed(stowed) | 3.0km/h |
Travelling speed(raised) | 0.8km/h |
Lifting/ lowering speed | 18/22sec |
Batteries | 4*6V/210Ah |
Charger | 24V/ 25Ah |
gradeability | 25% |
Max working slop | 1.5°/3° |
Tyre | 12*4 |
Standard Configuration:
proportional?control ? ? ? ? ? ? ? ? ? ? ? ? ?? ?Auto-brake system
Auto-lock door on platform ? ? ? ? ? ? ? ? ?Extension Platform
Drivable when lifted ? ? ? ? ? ? ? ? ? ? ? ? ?? ?Traceless tire
4 x 2 Driving ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Auxiliary lowering device
Emergency stop button ? ? ? ? ? ? ? ? ? ? ??Horn
Fault diagnosis system ? ? ? ? ? ? ? ? ? ? ??Tilting protection system
Action buzzer ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Time Recorder
Supporting bar ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Fork Lift Slot
Charging protection system ? ? ? ? ? ? ? ?strobe light
Detachable fence ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?Automatic pohole protection
Optional Configuration:
Overload protection sensor with alarm DC Power connection to the platform Working light on the platform Airway tube to the platformContact Us
