Steel Structures Workshed

Place of Origin	China

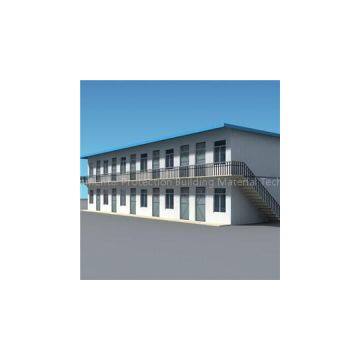

Prefab Steel Frame mobile House With EPS Panel Mobile panel house (K type) is a standard house model which can be designed as single story or multistory. The inside layout can be designed as per customers\' requirements. When delivery,Website: , it is knock-down to save space. Based on bolts connection without welding work, it could be assembled and disassembled easily and four workers can finish 100㎡ in 8 hours according to instruction and CD.The detail information is as follows: No.SortNameSpecification1SpecificationlengthNM+160(N=4,5,6... M is modular, 1M=1820mm)2WidthNM+160(N=3,4,5... M is modular, 1M=1820mm)3Wall height5715mm8565mm4Clear heightGround floor :2425mm First floor :2685mmGround floor :2425mm First floor :2425mmThree floor:2685mm6Standard accessoryWall board50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k.7Roof board50mm EPS sandwich panel, 0.3mm color steel sheet and 12kg/m3 polystyrene foam density inside. Heat Insulated coefficient is 0.041w/m.k. Heat transfer coefficient is 0.663w/.k.8DoorSIP with steel frame, single door with dimensions of 955*2024mm, furnished with a cylinder lock with 3keys. Doorframe is made of 1.5mm steel, 50mm thick EPS insulation foam.9WindowPVC , white color, with dimensions of 1750*950mm, glazed with glass in a thickness of 5mm, two bay sliding, supplied with fly screen.10Base beamC style steel. material:Q235.Painted11ColumnDouble C style steel. material:Q235. modular pace: 1830mm. Painted12Floor beamParallel truss(C style steel). material:Q235 Painted13Floor purlinGable truss(C style steel). material:Q235. Painted14Roof beamGable truss(C style steel). material:Q235.Painted15Roof purlinGable truss(C style steel). material:Q235.Painted16Inclined braceround steel, material:Q235. Galvanized and Painted17StairSteel stair, material: Q235. material:Q235.Painted18Treadpress steel board19Floor stab14mm plywood20OptionElevated ceilingCeiling of mineral wool acoustic panel, orCeiling of aluminum panel22Decorative floorPVC, laminated or ceramic tile23Drainage systemProvided plan, design and construction24Electric systemProvided plan, design and construction25Technical parameterBearing load50kg/m226Wind pressure:0.6KN/M20.45KN/M227Fire proofB2 grade28Resistant temperature-20 to 5029The resistant earthquake grade7 fission activate.FAQ ? 1. What kind of company you are? We are steel structure building Manufacturer located in Suzhou China, We were gaining good reputation among our customers for our professional, warm and thoughtful services. Because we know that a long-term business based on the quality control, price, packing, delivery time etc.2. Is your company a factory or trade company?We are factory, so you will enjoy the best price and competitive price. Our factory covers an area of 5,000 square meters.3. What\'s the quality assurance you provided and how do you control quality ?Established a procedure to check products at all stages of the manufacturing process - raw materials, in process materials, validated or tested materials, finished goods, etc.4. Can you offer designing service?Yes, we have more than 10 design engineers. We could design full solution drawings as per your requirements. They use software: Auto CAD,PKPM, MTS, 3D3S, etc.5. Do you offer guiding installation on site overseas?Yes, we can provide the service of installation, supervision and training by extra. We can send our professional technical engineer to supervise installation on site overseas.Our excellent design team will design the steel structure buildings for you. If you give the following information, we will give you an satisfactory drawing. ?1 Location (where will be built? ) _____country, area ?2 Size: Length*width*height _____mm*_____mm*_____mm ?3 Wind load (max. Wind speed) _____kn/m2, _____km/h, _____m/s ?4 Snow load (max. Snow height) ?_____kn/m2, _____mm ?5 Anti-earthquake _____level ?6 Brickwall needed or not If yes, 1.2m high or 1.5m high ?7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; If not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former. ?8 Door quantity & size _____units, _____(width)mm*_____(height)mm ?9 Window quantity & size _____units, _____(width)mm*_____(height)mm10 Crane needed or not If yes, _____units, max. Lifting weight____tons; Max. Lifting height _____mShould you are of interest to our products,just feel free to contact me.And you are welcome to pay a visit to our factory.
