Sell Stone-Making Machines Series

Place of Origin	China

Model No.:
Product Origin:China
Brand Name:Shanghai Shibang
Price Terms:
Payment Terms:
Certification:

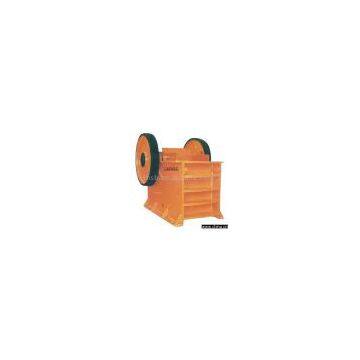

Description:Product Name: Stone-Making Machines SeriesPlace of Origin: ChinaJaw Crusher PE-150 x 250 Feed opening: 150 x 250 mm Max. Feed size: 125 mm Capacity: 0.6-3 t/h Power consumption: 5.5kw Discharge opening: 10-40 mm Overall dimension (L x W x H): 758×528×140mm Weight: 0.81 t PE-250 x 400 Feed opening: 250 x 400 mm Max. Feed size: 210 mm Capacity: 3-13 t/h Power consumption: 15kw Discharge opening: 20-60 mm Overall dimension (L x W x H): 1315×938×220mm Weight: 2.8 t PE-400 x 600 Feed opening: 400 x 600mm Max. Feed size: 340 mm Capacity: 10-34 t/h Power consumption: 30kw Discharge opening: 40-100 mm Overall dimension (L x W x H): 1732×1110×255mm Weight: 6.5 t PE-600 x 900 Feed opening: 600 x 900 mm Max. Feed size: 500 mm Capacity: 30-75 t/h Power consumption: 55-75kw Discharge opening: 65-160mm Overall dimension (L x W x H): 1840×1400×390mm Weight: 12 t PE-750 x 1060 Feed opening: 750 x 1060 mm Max. Feed size: 650 mm Capacity: 72-140 t/h Power consumption: 110kw Discharge opening: 80-140 mm Overall dimension (L x W x H): 2200×1660×552mm Weight: 28 t PE-1000 x 1200 Feed opening: 1000x1200 mm Max. Feed size: 850 mm Capacity: 197-214 t/h Power consumption: 110kw Discharge opening: 195-165 mm Overall dimension (L x W x H): 3182×1976×830mm Weight: 15.5 t PEX250 x 1000 Feed opening: 250 x 1000 mm Max. Feed size: 210 mm Capacity: 10-32 t/h Power consumption: 30-37 KW Discharge opening: 25 -60 mm Overall dimension (L x W x H): 1992×1500×330 Weight: 6.5 t PEX250 x 1200 Feed opening: 250 x 1200 mm Max. Feed size: 210 mm Capacity: 13-38 t/h Power consumption: 37 KW Discharge opening: 25 - 60 mm Overall dimension (L x W x H): 2192×1700×365 Weight: 7.7 t Impact Crusher Impact crusher type PF-1007 Having the following features: Dia.of the rotator: 1000 mm Length of the rotator: 700 mm Feed opening: 400 x 730 mm Max. feed size: 300 mm Capacity: 35-50 t/h Power consumption: 37-55kw Weight: 9500 kg Impact crusher type PF-1010 Having the following features: Dia.of the rotator: 1040 mm Length of the rotator: 1000 mm Feed opening: 400x1080 mm Max. feed size: 350 mm Capacity: 50-80 t/h Power consumption: 55-75kw Weight: 12127 kg Impact crusher type PF-1013 Having the following features: Dia.of the rotator: 1000 mm Length of the rotator: 1300 mm Feed opening: 650x1350 mm Max. feed size: 400 mm Capacity: 80-120 t/h Power consumption: 90-110kw Weight: 12000 kg Impact crusher type PF-1210 Having the following features: Dia.of the rotator: 1250 mm Length of the rotator: 1050 mm Feed opening: 400x1080 mm Max. feed size: 350 mm Capacity: 70-120 t/h Power consumption: 110-132kw Weight: 14000 kg Impact crusher type PF-1315 Having the following features: Dia.of the rotator: 1320 mm Length of the rotator: 1500mm Feed opening: 860x1520mm Max. Feed size: 500 mm Capacity: 180-260t/h Power consumption: 180-260kw Weight: 19000 kg Impact crusher type PF-1320 Having the following features: Dia.of the rotator: 1320 mm Length of the rotator: 2000mm Feed opening: 860x2030mm Max. Feed size: 500 mm Capacity: 300-350t/h Power consumption: 300-375kw Weight: 24000 kg Vibrating Screen Vibrating screen 2zsg 1848 Dimension of screen l x w:4800x1800 mm Deck:2 Mesh(mm):5-50 Max. Feed size:300 mm Capacity:30~250 t/h Power consumption:7.5 x 2kw Weight(kg):6189 Frequency(hz):16 Double amplitude(mm):8-10 Obliquity:15 Spec(l x w x h):4799 x 3440 x 2814 Vibrating screen 2zsg 1860 Dimension of screen l x w:6000x1800 mm Deck:2 Mesh(mm):5-50 Max. Feed size:300 mm Capacity:50~280 t/h Power consumption:7.5 x 2kw Weight(kg):8950 Frequency(hz):16 Double amplitude(mm):8-10 Obliquity:15 Spec(l x w x h):6000 x 3440 x 3326
