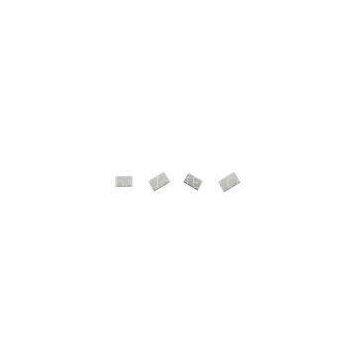

Anti-Collision Material ABS 2.4 Ghz RFID Tags Used In Parking Management
- T/T L/C D/P D/A
- 7 days
You May Like
-
Smart High UHF 860MHz - 960MHz RFID On-Metal Tags Waterproof IP68
-
Reusable small Long Distance Reading RFID On-Metal Tags 860MHz
-
IP65 UHF 860MHz RFID On-Metal Tags , Smart High Frequency RFID Tags
-
High Frequency UHF 860-960MHz RFID On-Metal Tags anti-metal Passive
-
Programmable 860MHz On Metal RFid Tags , Anti-Metal RFID Passive Tag
-
High Temperature HF 13.56MHz Laundry RFID Tags For Access Control System
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
? 2.4G ?RFID Tags Used In Parking Management Feature Anti-Collision Material ABS Specifications
1. Working frequency:ISM 2.4GHz ~ 2.5GHz?
2. Exclusive low-power consumption, longer working time?
3. Active operating mode
4. Material:ABS?
5. Size:65×35×12mm?
6. Temp:-30°C?~?+65°C?
7.?Frequency:2.45GHz?
8?Life:3-5?years?
RFID active tag, Long range RFID active tag, RFID active asset tag, RFID warehouse
management tag, Active vehicle management tag, RFID active card tag.
SAAT-T505 active RFID tag operates in the 2.45GHz band, which can be worn or mounted on vehicle windshield, widely used in school &cooperation personnel management and positioning; automatic vehicle identification, parking management, highway toll collection and so on.
Parameter
1.? Exclusive low-power consumption, longer working time
2.? Permanent 4-byte basic ID
3.? Active operating model, read-only
4.? PVC plastic shell, high-tension, water-proofin
Specification:
|
RF Parameter |
|
|
Operating Frequency |
2.400-2.48GHz |
|
Operation Mode |
FHSS or fixed frequency |
|
Modulation |
GFSK |
|
Communication Rate |
1Mbps |
|
Output Power |
-18dBm~0dBm(software adjustment,6dBm each step) |
|
Sensitivity |
-85dBm |
|
Basic Parameters |
|
|
Basic ID |
4-byte |
|
Operating mode |
Active operating mode |
|
Signal Interval |
500ms/time(can be customized) |
|
Battery Life |
6–year life (related with the operating mode and output power) |
|
Reading Distance |
0-150M (active operating mode, test under open environment) |
|
Mechanical& Electrical performance |
|
|
Dimensions |
3.3?in?×?1.4 in?× 0.2 in(L ×W × H) |
|
Weight |
22g |
|
Power Supply |
750mAhlithiumbattery |
|
Operating Temperature |
?-40°C~+60°C |
|
Humidity |
5%~95%(non-condensing) |
|
Waterproof |
IP67 |
|
Shock Resistance |
10~2000Hz,20mm/15g |
|
Reliability |
MTBF≥1*105h |
Feature & Advantage
?
Encryption and Authentication to ensure Data Security and Prevent Eavesdropping and Data Cracking Identification Direction: Directional and Non directional Identification Available ?High Identification Reliability: -40\'C ~ +85\'C, Anti Shock ?Effective Cost: Using 0.18uM Chips lead to Lower Cost ?Transmission:
Low Frequency and High Frequency are Global Open Microwave Band,?Applilication and Charges are not needed. ?Anti Interface:
No Special Requirements for the Various Kinds of Interference Source
