4, 6, 8, 12, 24, 48 Fibers Optional Ribbon multi-fiber Optic Pigtail for Telecommunication
- T/T L/C D/P D/A
- 7 days
You May Like
-
Low Back Reflection and Low PDL Fixed Type Fiber Optic Attenuator for Testing Instrumentation
-
FC, SC, ST, LC Optional Male to Female Type Fiber Optic Attenuator for Data Transmission Network
-
Excellent Environment Stability In-line Type Fiber Optic Attenuator for Testing Instrumentation
-
Low Additional Loss Adjustable Type Fiber Optic Attenuator for Passive Optical Networks
-
1x2, 1x4 and 1x n Fiber Optic Splitter for Optical Communication System
-
Multimode Fiber Optic Splitter used in LAN, PON, and Optic-fiber Sensors
Product Details
| Brand Name | CY | Place of Origin | China | |
Product Description
Certification:ISO9001:2008, SGS, ROSH

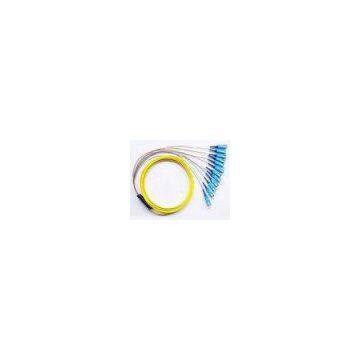

4, 6, 8, 12, 24, 48 Fibers Optional Ribbon multi-fiber Optic Pigtail for Telecommunication
Fiber pigtail is a short optical fiber permanently attached to a source, detector, or other fiber optic device at one end and an optical connector at the other.
Features:
4, 6, 8, 12, 24, 48 fibers optional
With a fan out kit at the junction of fibers
The fiber is flat type.
Applicable connector: FC, SC, ST, LC…
Cable material: PVC, OM1, OM2 or OM3 optional
Single mode or multi mode
Cable size: Φ 0.9mm, Φ2.0mm, Φ3.0mm
Application:
Specification:
|
Parameter |
Unit |
Ribbon multi-fiber connector |
||
|
SM |
||||
|
PC |
UPC |
APC |
||
|
Insertion loss (typical) |
dB |
≤0.3 |
≤0.2 |
≤0.3 |
|
Return loss |
dB |
≥45 |
≥50 |
≥60 |
|
Operating wavelength |
nm |
1310, 1510 |
||
|
Exchangeability |
dB |
≤0.2 |
||
|
Vibration |
dB |
≤0.2 |
||
|
Operating temperature |
℃ |
-40~75 |
||
|
Storage temperature |
℃ |
-45~85 |
||
|
Cord diameter |
mm |
φ3.0, φ2.0, φ0.9 |
||
|
Fiber count |
F |
4, 6, 8, 12, 24, … fibers |
||
|
Applicable connector |
FC, SC, ST, MU, LC |
