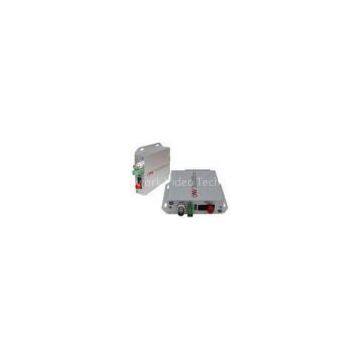

1 Channel BNC Video Multimode Fiber Optic Transceiver 20 - 100km

Brand Name	ONV		Place of Origin	China
Model Number	ONVDT/R1V-M. ONVDT/R1V-S,ONVDT/R1V-S40,ONVDT/R1V-S60,ONVDT/R1V-S100

Delivery Time:3-30 working days depending on the order quantity
Certification:ISO , CE
Name: fiber optic transmitter receiver, fiber optic video transceiver. Application: Video / Audio / Data / Ethernet signal transmission. Video Bandwidth:10MHz. Fiber Mode: single mode or multi mode. Video Interface: BNC. Video input/output impedance: 75Ω (unbalanced). Video Channel:1 Channel. Video SNR: S/N ≥ 70dB. Video input/output Voltage: 1VP - P (peak value), Max 1.2Vpp. Power supplier:2.5 w(Input:DC5V 1000mA).

1 Channel BNC Video Multimode Fiber Optic Transceiver 20 - 100km

>The1Channel Video Series optical transmitter and receiver products adopt the most advanced international technology of digital video and optical fiber transmission, performing synchronous, undistorted, uncompressed and high quality signal transmission over all kinds of optical fiber.
?

>This Fiber Optical Transmitter & Receiver can be easily used in the normal operation by virtue of LED indication of working status, and without any electric or optical regulation on site. It can be installed independently or installed in 2U/4U rack.

Applications:

Typical applications:

Specifications:

Fiber Features: ( the fiber optic connectors usually is FC, can order ST)

Type	wavelength (nm)	TX power dBm	Transmission Distance? Km	Lose dBm/Km	Fiber Type
Multi-mode	850,1310	-19.5~-16	0~2	1	850/1310nm(Multi-mode)
Single-mode	1310	-9~-6	0~20	0.5	Single-mode(9/125um)
1310	-7~-4	0~40	0.5	Single-mode (9/125um)
1310	-5~-1	0~60	0.25	Single-mode (9/125um)
1550DFB	-2~0	0~100	0.25	Single-mode (9/125um)

Video Feature:

Video Interface: BNC
Video input/output impedance: 75Ω (unbalanced)
Video input/output Voltage: 1VP - P (peak value),Max 1.2Vpp
Video Bandwidth: 10MHz
Video sampling: 15MHz high speed sampling
Video digit bit width: 10/12 bit
Differential gain: ( 10%-90%APL) DG <1%( Typical value)
Differential phase: ( 10%-90%APL) DP <0.8°( Typical value)
Video SNR: S/N ≥ 70dB (Maximum optical link path loss)

General Parameter:

Operating Temperature: -40 ℃～+85 ℃
Storage Temperature: -45 ℃～+95 ℃
Relative humidity: 0～95% (Non-condensing)
Power Voltage: AC85-260v/50Hz
MTBF:≥100000 hours
Power supplier:2.5 w(Input:DC5V 1000mA)

Product size(mm):116X87.5X25.5
