Home > Products > WDR Camera > PIXIM WDR DOME IR CAMERA GCS-WDR510B Series
PIXIM WDR DOME IR CAMERA GCS-WDR510B Series
Negotiable
/ Piece
20 Pieces(Min.Order)
- 50000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Spy PIR Hidden Camera LJ-H585A,Pinhole Hidden PIR Detector Camera
-
Color Miniature Camera , Miniature Hidden camera GCS-M51X series
-
Color Miniature Camera with 3.6mm lens GCS-M41X series
-
550X Zoom Camera , All-in-one camera GCS-Z550H
-
980X Zoom Camera GCS-Z980H, 35X optical Zoom
-
CCTV Box Camera GCS-520W
Product Details
| Brand Name | globalcctvsec | Place of Origin | China | |
| Model Number | GCS-WDR510B |
Product Description

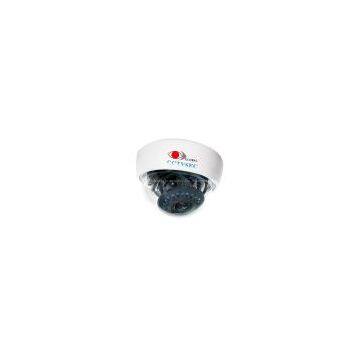

PIXIM WDR DOME IR CAMERA GCS-WDR510B Series
GCS-WDR510B series IR dome cameras, adopted PIXIM lastest "Seawolf" solution, Ultra WDR range up to 120dB, high resolution up to 690 HTVL-E, 20 meters IR range and a firmer structure with integrated brackets. It is convenient and flexible to install the 3-Axis bracket in different environments. OSD key-press is available.
Feature:
Super wide dynamic range 120dB
Indoor dome camera
Hight resolution up to 690 HTVL Effective
20m IR Range
OSD menu
DC12V/AC24V Duplicate power design
IR-CUT.
Specification:
| Moel No | GCS-WDR510BA | GCS-WDR510BC | |
| Sensor | Sensor | 1/3 DPS Sensor | |
| Menu Operation | Video Format | PAL/NTSC | |
| Resolution | 690 HTVL Effective* | ||
| Mini.Illumination | 0 Lux IR ON | ||
| S/N Ratio | up to 50dB max (Y signal, AGC off) | ||
| Ess Modes | 1x~32 x | ||
| AGC | Programmable up to 50dB | ||
| WDR | 120 db(max) | ||
| Iris Control | Electronic iris/Auto iris lens (DC drive) | ||
| Extended Slow Shutter | 2x / 4x / 8x / 16x / 32x | ||
| Noise Reduction | 3D Motion Adaptive | ||
| Digital Zoom | 8x | ||
| White Balance | ATW, AWB | ||
| Low Light Mode | Low speed shutter,AGC,Sense up B/W Low Speed Shutter .Image | ||
| Day/Night | True Day/Night, Soft Day/Night (B/W) | ||
| Sync Mode | Internal/Line Lock | ||
| Power | Voltage | 12V DC | 12V DC |
| Current | ≤150mA(IR OFF) ≤350mA(IR ON) | ||
| Vide output | 1.0Vp-p/75 Ω Composite | ||
| Lens | 4-9mm | 2.8-12mm | |
| IR-Range | 20Meters | ||
| Operating Temp. | -10℃~50℃ | ||
| Storage Temp. | -20℃~60℃ | ||
| Dimension | Φ128*91mm | ||
| Weight | 570g | ||
