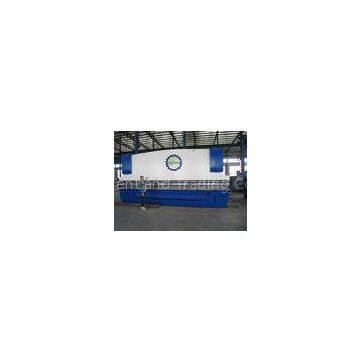

CNC Plate Sheet Metal Bending Machine Hydraulic Press Brake steel welded structure
USD $4 - $5
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Hydraulic Metal Plate CNC Press Brake Machine WC67Y High Efficiency
-
Metal Plate Atuomaitic CNC Press Brake Machinery High Efficiency and High Precision
-
High Speed Horizontal Metal Turning Lathe Machine with Automatic Feed Stopper
-
Metal Hydraulic CNC Press Brake CE Standard For Sheet Metal Bender
-
Metal lathe equipment High Precision Mechanical Engineering Lathe Machine
-
High Precision Lathe Machine Threading Inch With Work Light
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
China Manufacture Metal Hydraulic CNC Press Brake CE Standard European type for sale
Main Features:?
1. Whole steel welded structure, with internal stess eliminated by vibration aging technology, high strength and good rigidity;
2. Hydraulics with torsion bar;
3. Intergrated hydraulic system, upper transmission, pressure control for adjustment of tonnage;
4. Segmented upper punch, multi-V lower die;
5. Oblique steel solid deflection compensation device is adopted for upper punch; NC Press Brake/Hydraulic Press Brake/Press brake/NC Bending Machine/NC Bender/Torsion Bar Press Brake Machine
Equipments for WC67K/WC67Y China Taifeng Hydraulics German BOSCH Hydraulics CE Norm BOSCH Hydraulic System Worktable Manual Compensation China Gear Pump China Oil Pump BOSCH Pump Quick Clamping Electrics Light Guards Laser Guards Ball Screw, linear guide, servo motor
Main specification:
| Type | Nominal Force(mm) | Worktable length(mm) |
Poles distance (mm) |
Throat depth (mm) |
Slider traver (mm)? |
Max open (mm) |
Power (kw) |
Dimention L*W*H(mm) |
| 40t/2200 | 400 | 2200 | 1850 | 230 | 100 | 320 | 5.5 | 2200*1200*1910 |
| 40t/2500 | 400 | 2500 | 2030 | 230 | 100 | 320 | 5.5 | 2500*1200*1910 |
| 50t/2500 | 400 | 2500 | 1970 | 230 | 100 | 320 | 5.5 | 2500*1200*2000 |
| 63t/2500 | 500 | 2500 | 1970 | 250 | 100 | 320 | 5.5 | 2500*1300*2210 |
| 63t/3200 | 630 | 3200 | 2500 | 250 | 100 | 320 | 5.5 | 3200*1300*2210 |
| 80t/2500 | 630 | 2500 | 1970 | 250 | 100 | 340 | 7.5 | 2500*1450*2300 |
| 80t/3200 | 800 | 3200 | 2500 | 250 | 100 | 340 | 7.5 | 3200*1450*2300 |
| 80t/4000 | 800 | 4000 | 3100 | 250 | 100 | 340 | 7.5 | 4000*1450*2400 |
| 100t/2500 | 800 | 2500 | 2000 | 320 | 120 | 370 | 7.5 | 2500*1550*2500 |
| 100t/3200 | 1000 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3200*1550*2500 |
| 100t/4000 | 1000 | 4000 | 3100 | 320 | 120 | 370 | 7.5 | 4000*1550*2500 |
| 125t/3200 | 1000 | 3200 | 2600 | 320 | 120 | 370 | 7.5 | 3200*1550*2500 |
| 125t/4000 | 1250 | 4000 | 3100 | 320 | 120 | 370 | 7.5 | 4000*1550*2500 |
| 160t/3200 | 1600 | 3200 | 2510 | 320 | 200 | 450 | 11 | 3200*1700*2800 |
| 160t/4000 | 1600 | 4000 | 3040 | 320 | 200 | 450 | 11 | 4000*1700*2800 |
| 160t/5000 | 1600 | 5000 | 3800 | 320 | 200 | 450 | 11 | 5000*1900*3100 |
| 160t/6000 | 1600 | 6000 | 4600 | 320 | 200 | 450 | 11 | 6300*1900*3100 |
| 200t/3200 | 2000 | 3200 | 2510 | 320 | 200 | 450 | 15 | 3200*1900*2800 |
| 200t/4000 | 2000 | 4000 | 3040 | 320 | 200 | 450 | 15 | 4000*1950*2800 |
| 200t/5000 | 2000 | 5000 | 3800 | 320 | 200 | 450 | 15 | 5000*1950*3000 |
| 200t/6000 | 2000 | 6000 | 5000 | 320 | 200 | 450 | 15 | 8000*1950*3300 |
