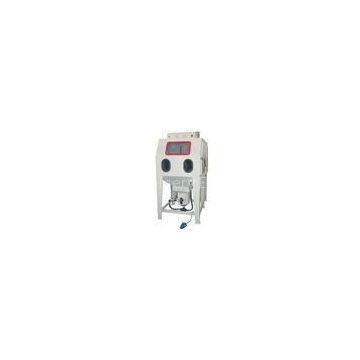

Descaling / Derusting Pressure Blasting Cabinet Universal Manual 400Kg Loading Weight

Descaling / Derusting Pressure Blasting Cabinet Universal Manual 400Kg Loading Weight

Specifications:

Description:

Abrasive is held in the storage hopper of the blast machine and delivered to the suction gun through a media hose.

Compressed air is brought into the suction gun from the regulator through an air hose.

As dry and regulated compressed air flows through the air jet, it passes through a mixing chamber before it enters the blast nozzle.

Negative pressure, or suction, is created in the mixing chamber of the gun body and media is drawn into the blast nozzle, much as water is sucked through a straw.

Incoming compressed air accelerates the media to a velocity of approximately 60 to 100 CFM, depending upon the air pressure selected. (The CFM of compressed air required to operate a suction gun is determined by the orifice in the air jet combined with the orifice in the blast nozzle.)

Applications:

pressure sand blasting cabinets are perfect for cleaning, debarring and providing decorative finishes to a wide range of small parts. Cabinets feature a compact design and can be easily integrated into existing processes for manual or hoist truck loading. Blasting cabinets are used for cleaning, deburring, surface finishing, and decorative blasting.

Competitive Advantage:

Without danger/risk, hygienic, ecofriendly, sound and ergonomic.

Applicable for all types of sandblasting media.

Continuous filtration and periodic dedusting of the filters.

The loading frame fits perfectly with the loading/unloading table.

Various options are possible like a rotating table, rotating table on rail, adjustable support,
