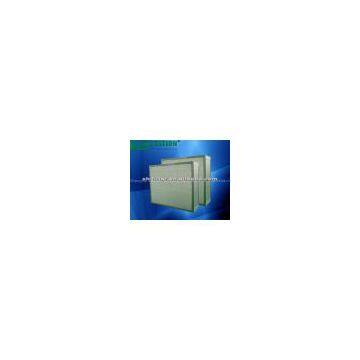

HEPA filter
- 10000 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | FilterStation | Place of Origin | China | |
| Model Number | STX-MAB |
Product Description
Reduced space requirement
Low pressure loss
Robust construction
Available in a range of standard sizes
Applications…air filtration in laminar and turbulent flows clean room classes 100000(M5)to 10000(M4)acc. FS2009E
Type…minipleat HEAP semi-absolute filters
Frame…extruded anodized aluminium, 69mm depth
Filter media…micro-fibre glass
Protective grids…white epoxy painted microdrawn grid
separators…corrugated aluminium
sealant…polyurethane
gasket…one piece polyurethane ,semi-circular profile
EN1822 class…H10
MPPS average efficiency…≥85%
0.3μm D.O.P. efficiency…≥95%
Final pressure drop… ( recommended ) 400Pa –(maximum) 600Pa
Maximum air flow rate …in order to retain laminar flow and efficiency characteristics these filters must not exceed their rated capacity
Max. operating temperature…60℃
Max. relative humidity…90%RH
Installation…filter housings type STXK-STXS-clean rooms. Operating theatres etc.
|
Type |
Model |
Dimensions |
Filtering surface (m2) |
Rated air flow (m3/h) |
Initial pressure drop (Pa) |
||
|
Height (mm) |
Width (mm) |
Depth (mm) |
|||||
|
MAB |
3 |
305 |
305 |
69 |
3 |
450 |
190 |
|
MAB |
42 |
305 |
610 |
69 |
5 |
900 |
250 |
|
MAB |
43 |
457 |
457 |
69 |
6 |
1050 |
250 |
|
MAB |
4 |
610 |
620 |
69 |
10 |
1800 |
250 |
OTHER SIZES: ON REQUEST
OTHER MATERIALS ON REQUEST
