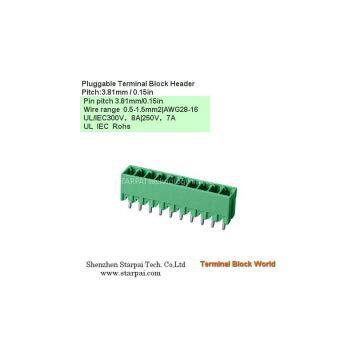

Pitch 3.81mm/ 0.15in Pluggable Terminal Block Header 02poles
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | STARPAI | Place of Origin | China | |
| Model Number | 404-1-3.81-02-3 |
Product Description
specification:
Part No.:404-1-3.81-02-3 (Series-header-pitch-poles number-coor or other sign)
Certification: UL, RoHS
pitch: 3.81 mm
pole: 02 pin ( Effective poles:02-12pins, Require another poles, please contact our company. )
color:green
torque: 0.2nm
strip length: 6-8 mm
voltage: 300 V
rated current: 8A
insulation resistance: 5000m ohm / 1000 v
contact resistance: 20mohm
withstand voltage: 2000 V / 1 min
wire range: 28 ~ 16AWG
package including:
2 pole plug terminal header: 100 pieces
note:
the terminal block in the stock of the 02 poles to 12 poles
if you want to buy another pole terminal blocks,for example, 02poles, 03poles,...12poles,please leave a message. thanks
