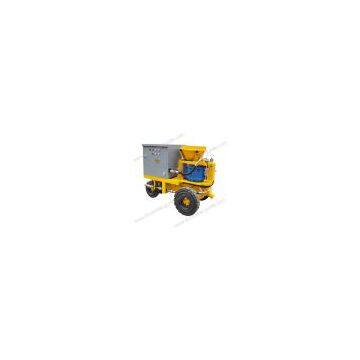

DY-PZ-05 Shotcrete Machine by Dry mix

Brand Name	dayu		Place of Origin	China
Model Number	DY-PZ-05

Max.aggregate size: 15 mm Max. Conveying Distance: grout pump 200m for horizontal, 80m for mortar mixer vertical Water cement ratio: below 0.4 Hose inner size: 50mm The DY-PZ-5 is a middle-size shotcrete machine for the processing of dry or damp mix. Thanks to its compact design and mobility, the machine can be used in which the space is at a premium mortar pumps e.g. in mines or galleries. it is widely employed in mining, mortar pump,tunnel lining, channel lining, culvert, subway, seismic rehab, specialty projects,plastering machine, hydropower engineering, underground excavation engineering shotcrete machine etc. The DY-PZ-5 has advantages of advanced technology, steady quality, easy operation, high strength and durability, the machines plastering pump can be driven by electric motor, spraying machine,air motor or diesel. Technical Date Name DY-PZ-5 spraying machine Output 5.5m3/hour Max. Conveying Distance 200m for horizontal, 80m for vertical plaster pumps Water cement ratio below 0.4 Max. aggregate size 15mm plastering pump Hose inner size 50mm Operating air pressure 7~8m3/min Motor power 5.5kW (7.5hp) shotcrete machine Basic chassis Type, skid or railway wheel key words:grout pump,mortar mixer,mortar pumps,mortar pump,plastering machine,shotcrete machine,plastering pump, plaster pumps, spraying machine , gunite machine
