Home > Products > COG LCD Module > 96x64 COG LCD module 9664 dots , Brightness FSTN LCM screen panel

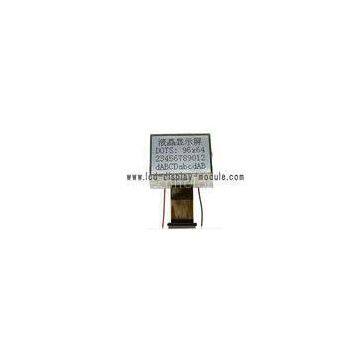

96x64 COG LCD module 9664 dots , Brightness FSTN LCM screen panel

FOB Price

US$ 4 - 5 / Piece

1 Piece(Min. Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

96x64 COG LCD Display module 9664 dots FSTN LCM screen panel

Main specification

tem	Value
Structure	COG?lcd module display
LCD?Display?Mode	FSTN, Positive,?Transflective
Viewing?Angle	6H
Driving?Method	1/65 duty,?1/9 bias?
Backlight	Optional
Control/Driver?IC	ST7549
Display Outline (mm) ? ? ? ? ? ?	28.0 x 22.3 x 1.7Max.?????????????????
Viewing?Area (mm)	25.0 x15.3
Active?Area (mm)	23.02 x 14.06
Dot?Pitch	0.2x?0.22
Dot?Size	0.22 x?0.24

Item	MIN.??????	MAX.????
Operating?Voltage(V)	0	3.0
Operating?Temperature(°C)	0	55
Storage?Temperature(°C)	-20	60

Important Information for your reference.

1.?Our?standard COG LCD?Module?size:

??? 16x3 dots,? 96x16 dots,? 96x26 dots,?? 96x64 dots,?? 96x96 dots,?? 128x32 dots,?? 128x48 dots

??? 128 x64 dots,??? 128x128 dots,?? 132x32 dots,?? 132x64 dots,??? 160x104 dots,? 160x160 dots

?? ? 240x160 dots,?? 384x16 dots

2.?New?products:?3.5\",?4.3\",?5.0\",?and?7\"?TFT?LCD?with?CTP?and?MCU?interface?.

3.?2.2\",?3.5\"?transflective?/?sun?readable?TFT?LCD.?

4.?Our?specials?new?design?for?TFT?LCD,?can?make:

???1)??AR(?Anti-reflective),

???2)??AF(Anti-fingerprint)

???3)??AG(Anti-Glare)

??????and?also?use?EWV(extremely?wide?view)?polarizer.

5.?Special?items:?4.3\'\'?,?5.0\'\',??7.0\'\'?developed?1000nits?brightness.

6. Also, custom LCD / LCM availabe.?

CUSTOMER LCM DESIGN GUIDE
Dimension	LCD outline (WxHxT)=(???? ) x (??? ) x (???? ) mm
Viewing Area(WxH)= (???? ) x (???? ) mm
Active Area(WxH)=(???? ) x (???? ) mm
LCD Panel	Character Type:? ( ? ? ? ? ) x? (? ? ? ? )
Graphics Type: ?( ? ? ? ? ) x? (? ? ? ? )
Segment Type:? (Pleease fill the display contents here)
Display Contents	Liquid Crystal:? TN[??? ],? HTN[???? ],? STN Yellow-Green[???? ],? STN Gray[???? ],? ??????????? ? ? ? ? ? ? ? STN? Blue[???? ],? FSTN[???? ], DFSTN [? ]
Polarizer Mode: Reflective[???? ],? Transflective[???? ],? Transmissive[???? ]
Display Mode: Positive[???? ],???? Negative[???? ]
Viewing Angle: 6:00[???? ],?? 12:00[???? ],??? Other[?????? ]
Backlight?	Type: Without[???? ],? LED Array[???? ], LED edge[???? ],? other[???? ]
Colour:? Green[???? ],? Yellow-Green[????? ],?? White[????? ],Green[? ] ?Blue[???? ],? ????????????? Orange/Amber[?????? ],?? Other[????? ]
Specified IC	LCD driver:(???????????? ):????????????????? Controller:(????????????? )
Product form	LCD panel[?? ], COB(LCD module)[?? ],?? COG[??? ],???? COF[?? ]
Connector	Zebra[???? ],? Metal pin[???? ],?? FPC [???? ], FFC[?? ], Heat seal[?? ]
Operating Temperature	?0 to +50°C [?? ],? -10 to +60°C [?? ],? -20 to +70℃ [???? ], -30 to +80℃ [?? ]
Operating Environment	Outdoors[?????? ],??? Indoors[???? ]
Operating Voltage	3V [??? ],? 3.3V[?? ],? 5V[???? ], Other[??? ]
Application	?
Other Requirements
Notes: 1. Please fill \"√\" in the matched [? ] and your particular requirements in the ( ) and blank.
? ? ? ? ?? 2. Please send us the draft diagram of LCD you need if you? have.

Why purchase from Hongsus Display Technology Co., Ltd.
?
1. You?can?choose?from?our?extensive?range,?including:

? ? 1)? TN?LCD?Display?&?TN??LCD?Module

? ? 2)? HTN?LCD Panel &?HTN?LCD?Module

? ? 3)? STN?LCD?Display?&??STN?LCD?Module

? ? 4)? FSTN?LCD?Display?&?FSTN LCDModule

? ? 5)? DFSTN?LCD?Panel?&?DFSTN?LCD?Module

??? 6)? COG?LCD?
