Home > Products > Wire to Board Connector > 5 Contact 4 mm Pitch Wire to Board Connector For LCD Back Light Lamps JST BHR-05VS-1 Equivalent

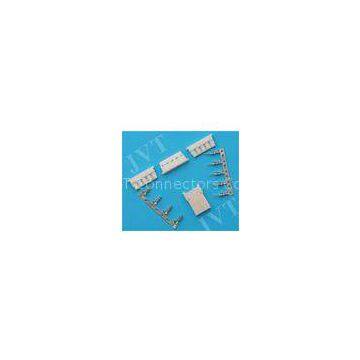

5 Contact 4 mm Pitch Wire to Board Connector For LCD Back Light Lamps JST BHR-05VS-1 Equivalent
US$ 4 - 5
/ Kilogram
1 Kilogram(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
-
JVT Wire to Board PCB 3.96mm Pitch Connector Vertical with Friction Lock 2 Circuits Cross
-
PA9T UL94V-0 Wafer BH 3.5mm Wire to Board Connector for FPC / PCB / PC
-
2 - 20 Poles MOLEX 2510 Flat Wire Connectors , AWG#22-28 2.54 mm Pitch Connector
-
Molex 52134 Seires 20 Multi Pin Connectors JSL Wire to Wire 2.54mm Pitch
-
Tin Plated EH 2.5mm Wire to Board Connector with Nylon 66 UL94V - 0 Wafer
-
Male 2.50mm Pitch Wire to Board Connector with Low Profile Pre Tin Plating
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
5 Contact 4 mm Pitch Wire to Board Connector For LCD Back Light Lamps JST BHR-05VS-1 Equivalent
Equivalent of JST BHR-05VS-1 4.0mm ?5 contact ? housing Wire to Board Connector ,For LCD back light lamps?
Low profile connectors with high withstanding voltage, designed for connecting liquid crystal display back light lamps to their starters.
*SMT configuration
*Its crimp style contact can be inserted into the housing with little force, thus making them suitable for use with flexible wires such as those insulated with sillicone rubber.
Specifications :
|
Pitch |
4.0mm |
|
Poles |
?2-5 |
|
Applicable?wire |
AWG#18-22 |
|
Voltage?rating |
600V?AC/DC |
|
Current?rating |
1A?AC/DC |
|
Withstand?voltage |
1500V?AC/minute |
|
Working?temperature |
-25°C?to?+85°C |
|
Insulation?resistance |
1000MΩ?Min |
|
Contact?resistance |
20MΩ?Max |
