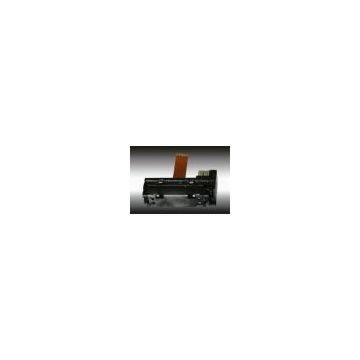

TP2JX Thermal Printer Mechanism

2 inch thermal printer mechanism TP2J is ultra compact, high speed, light weight thermal printer , printing on 2-inch wide paper (58mm). This thermal printer mechanism, with easy loading mechanism, improves paper loading and printer mechanism maintenance greatly.

Model                       TP2JX
printing printing method    thermal dot printing
 number of dots       384dots/line
 resolution        8dots/mm
 paper width (mm)          58mm
 printing width (mm) 48mm
 paper thickness (μm) 60-80  printing speed 75mm/s Max           paper loading easy loading
detection paper end/black mark sensor by photo interrupter
  head temperature                   by NTC thermistor
operating voltage    for printer head 5.5V to 9.5V     for logic  3.0V to 3.60V
             for motor          5.5V to 9.5V peak current     for head       2.49A(at9.5V,45dots)     for motor     0.6A Max
life abrasion resistance 100 KM
 pulse activation          100 million
operating environment  operating temperature -10-50℃
               operating humidity 10~90%RH  (No condensation)
               storage temperature -20℃ to 60℃
 storage humidity 5~95%RH   (No condensation)
dimension  printer mechanism: 68.5*36.5*22.0mm
weight (g) printer mechanism 38g
Compatible: LTPJ245G
