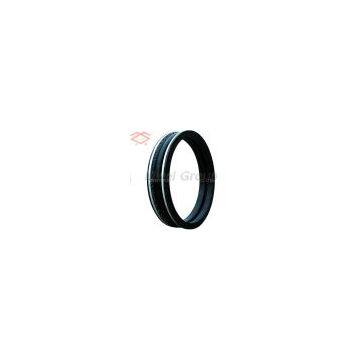

Rubber Expansion Joint GJQ(X)-SQ-II
Negotiable
/ Set
1 Set(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Liwei | Place of Origin | China | |
| Model Number | GJQ(X)-SQ-II |
Product Description
1. This product can greatly reduce pipeline system shock and noise. And can fundamentally resolve pipe joints displacement, axial stretch and nonconcentricity.
2. By using different materials, it can be made many kinds to cater for different medium and environment. Such as acid resistance, alkali resistance, corrosion resistance, oil resistance and heat resistance etc.
3. The material is purerubber, sealing is very good. It is in light weight, very easy for installation. This product has long life performance, but must be not contact with sharp metal instruments to avoid piercing the sphere.
4. The product can be used for lift and transportation of raw water and sewage, transportation of water supply cooling cycle water thermal power, condensate water of metallurgy industry and chemical industry,
Delivery time:
Within 30 days after receipt of the deposit
| DN |
FF Length (mm) |
Axis displacement | Radial displacement | Deflexion displacement | ||
| mm | inch | Extension | Compression | |||
| 300 | 12″ | 450 | 75 | 90 | 70 | ±12° |
| 350 | 14″ | 450 | 75 | 90 | 70 | ±12° |
| 400 | 16″ | 450 | 75 | 90 | 70 | ±12° |
| 450 | 18″ | 550 | 90 | 110 | 70 | ±12° |
| 500 | 20″ | 550 | 90 | 110 | 75 | ±12° |
| 600 | 24″ | 550 | 90 | 110 | 75 | ±12° |
| 700 | 28″ | 550 | 90 | 110 | 75 | ±12° |
| 800 | 32″ | 550 | 90 | 110 | 75 | ±12° |
| 900 | 36″ | 550 | 90 | 110 | 75 | ±12° |
| 1000 | 40″ | 550 | 105 | 125 | 85 | ±12° |
| 1200 | 48″ | 550 | 105 | 125 | 85 | ±10° |
| 1400 | 56″ | 600 | 105 | 125 | 85 | ±10° |
| 1600 | 64″ | 600 | 105 | 125 | 85 | ±10° |
| 1800 | 72″ | 600 | 105 | 125 | 85 | ±10° |
| 2000 | 80″ | 600 | 120 | 135 | 90 | ±10° |
| 2200 | 80″ | 650 | 120 | 135 | 90 | ±10° |
| 2400 | 96″ | 650 | 120 | 135 | 90 | ±10° |
| 2600 | 104″ | 650 | 120 | 135 | 90 | ±10° |
| 2800 | 112″ | 650 | 120 | 135 | 90 | ±10° |
| 3000 | 120″ | 650 | 120 | 135 | 90 | ±10° |
Packaging details:
Unfumigation wooden case (out package) and plastic film and textile membrane(inside package). We can make change as your request.
