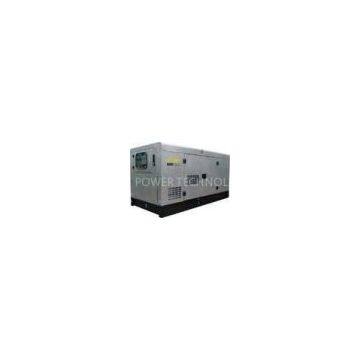

20kw / 25kva Silent Isuzu Diesel Generator Set, 1500rpm, 50hz V24SU

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Supply Ability 0 Kilogram / Kilograms per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	VICTORY POWER RELIABILITY		Place of Origin	China
Model Number	ISUZU 20KVA~60KVA

Product Description

Delivery Time:30 DAYS
Certification:CE, ISO, SONCAP

1.Rating voltage 380V/220V, 400V/230V
2.Frequency 60HZ, 1800RPM
3.Protection Standard: IP21-IP23
4.Model of Connection: 3 phase 4 lines

High Steady 20kw / 25kva,1500rpm, 50hz Silent Isuzu Diesel Generator Set V24SU

?

Standard Features:?	?	?	?	?
Frequency 50HZ, 1500RPM, Rating voltage 380V/220V, 400V/230V	?
Frequency 60HZ, 1800RPM, Rating voltage 208V/120V, 220V/127V, 480V/277V
Power Factor 0.8(lagging)	?	?	?	?
Protection Standard: IP21-IP23	?	?	?
Model of Connection: 3 phase 4 lines	?	?	?
Insulation Grade: H	?	?	?	?
Frequency Drop(%): ≤ 0.5	?	?	?	?
Transient state frequency deviation(%):(advertised power ) +10～-7	?
Frequency Recovery Time(S): ≤ 3	?	?	?
Voltage Recovery Time(S): ≤4	?	?	?
Waveform Distortion(%): ≤5	?	?	?
Voltage Regulation: +_1.0%	?	?	?

Descriptions:

Victory Isuzu series diesel generator adopts with Isuzu brand engine made by China Foton Company, whose 4JB serie is developed in cooperation with Austria AVL company on the base of ISUZU engine. It is optimized in fueling can cooling system according to the charactor of diesel genset. It is small-sized and compact with high adaptability and reliability and is an ideal genset in the 20kW to 40kW serie gensets.

SPECIFICATIONS:
?

GENSET MODEL	V24SU	V26SU	V37SU	V26SU	V34SU	V45SU
Prime Power	20KW/25KVA	24KW/30KVA	33KW/41KVA	24KW/30KVA	30KW/37.5KVA	40KW/50KVA
Standby Power	24KW/30KVA	26KW/33KVA	37KW/46KVA	26KW/33KVA	34KW/42.5KVA	45KW/56KVA
DIESEL ENGINE MODEL	4JB1	4JB1T	4JB1TT	4JB1	4JB1T	4JB1TT
1500RPM, 50Hz	1800RPM, 60Hz
Engine Prime Output(KW)	24	28	36	28	34	43
Aspiration	Natural?	Turbocharged	Turbocharged	Natural?	Turbocharged	Turbocharged
Bore(mm)XStroke(mm)	93X102
Cubic Capacity (L)	2.771
Piston Speed (m/s)	5.1 m/s
Compression Ratio	18.2:1
Speed Stability Bandwidth	≤±0.8%
Steedy Governing Rate	≤5%
Acoustic Pressure	91dBA (at full load, 1m distance)
Exhaust Temperature	500℃
Exhaust Back Pressure	15Kpa
Lube Temperature/ Capacity	120℃/5.5L
Cooling System Volume	4.5L (except water tank)
Rating Fuel Consumption(L/h)	5.6	6.4	8.5	6.5	7.
