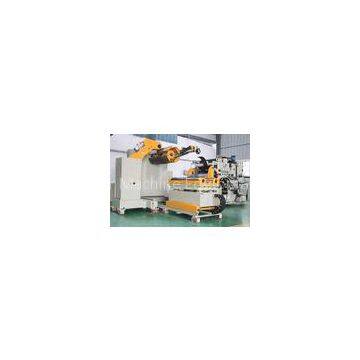

20m/min Feeding Speed Uncoiler Machine , Pressing Arm Automatic Straightening Machine

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

20m/min Feeding Speed Uncoiler Machine ,? Pressing Arm Automatic Straightening Machine

1. Feature:

Hold down device Feeding line easily adjusts by advance worm gear screw jack device Indicator Electric Eye Loop Control System Feeder and Straightener Rolls with A hard chrome finished. Outgoing catenary to assistance support the material Inverse curve roil-easy to setup the up curve or down curve feeding exit direction The uncoiler contain the butterfly brakes air compressor 2. Introduction: Shenzhen Honger Machine Equipment Co.,Ltd are professional Uncoiler Sraightener Feeder 3 in 1 Machine in China.We are the only own international advanced big CNC that include FPW & VMC.The best quality best price Uncoiler Sraightener Feeder 3 in 1 Machine manufacturer in Guangdong. Our Uncoiler Sraightener Feeder 3 in 1 Machine speed can reach 0-20m/min. Precision is better than 0.05mm.And suitable all kinds of metal coil. Our Uncoiler Sraightener Feeder 3 in 1 Machine is suitable 0.5-6.0mm thickness all metal coil feeding. Our Uncoiler Sraightener Feeder 3 in 1 Machine widely used to computer, mobile phone,automobile industry,appliances manufacturing, medical apparatus and instruments, hardware & Metal parts etc industry. 3. Technical data:

Name	Uncoiler Straightener and Servo Feeder Machine 3 in 1
Model	GLK4-400	GLK4-600	GLK4-800	GLK4-1000	GLK4-1300
Material strength	b≤392Mpa σs≤245MPa
Material width	70-400mm	70-600mm	70-800mm	70-1000mm	100-1300mm
Applicable material thickness	0.6-6.0mm
Feeding length	0-9999.99mm
Inside coil diameter	Φ508mm
il outside diameter	Φ1400mm
il weight	5000KG	5000KG	5000KG	7000KG	7000KG
Max. feeding speed	22m/min
Expansion style	Hydraulic expansion
Pressing way	With pressing arm
Straightener roller	7 Pieces , top4/bottom 3,
Power	AC380V±10%,50HZ ±2% , (can be changed according to your requirement)
Pneumatic pressure	0.5Mpa
Running direction	From left to right

4. Buyer requirement:?

Package	Wooden case
After-Sale service	1 Year
Delivery time	30-65 workdays
Shipping way	Ocean shipping
Payment term	T/T L/C Cash or other

5. Product configuration:?

Motor	YASKWA
Man-machine?interface	Hai?teck?From?Taiwan
CE?Certificate	Passed
Coil?loading?way	Coil?car
Feeding?control?way	Servo?motor?with?PLC
Air?cylinder	Japan?CKD
PLC	Mitsubishi
Driver	YASKAWA
Feeding?way	Automatic
Expansion?way	Hydraulic?
Bearing	Japan?NSK
Big?customer	Media,?Haier?,?AUDI,DONGFENG?etc.

6. Matched equipment:? Progressive Mould/tool/die Beg heavy press machine Photoelectric hand Conveyer belt etc.

7. Finished?product?showing:
