Home > Products > Centrifugal Casting Pipe > Ductile Iron seamless Steel Centrifugal Casting Pipe Mould For Petroleum,20CrMo/30CrMo, 240-280HB
Ductile Iron seamless Steel Centrifugal Casting Pipe Mould For Petroleum,20CrMo/30CrMo, 240-280HB
- T/T L/C D/P D/A
- 7 days
You May Like
-
Forging Nodular Iron Centrifugal Casting Pipe / tube of 20CrMo/30CrMo, Inner diameter 600mm
-
OEM Cr12, W18Cr4v 1045 Tool Steel for Moulds and Antifriction Tool, Diameter 250mm~600mm
-
Hardness After Annealing HBS 140 - 220, 1045 Tool Steel Used to Moulds, Antifriction Tool
-
Diameter 250mm~600, 1045 Tool Steel for Measuring Tools, Moulds and Antifriction Tool
-
5CrMnMo, T10, Cr12, W18Cr4v 1045 Tool Steel, Diameter 250mm~600mm, 1 T -- 6T Weight
-
4145H Modified Steel Forged Drilling Stabilizer Collars for Oil Drilling Equipment
Product Details
| Brand Name | kyforging | Place of Origin | China | |
| Model Number | FP-5 |
Product Description
Certification:ISO9001:2008

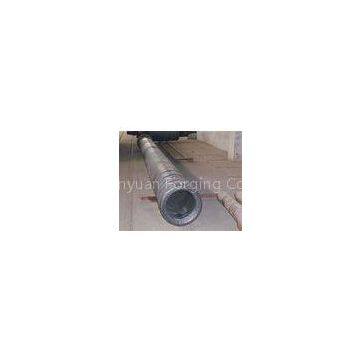

Ductile Iron Steel Centrifugal Casting Pipe Mould For Petroleum
Quick Detail:
1. Material:20CrMo,30CrMo
2. Outer Diameter ≤800mm
3. The max Length:8000mm.
Specifications:
|
Name |
Pipe Mould |
|
Manufacture Technique |
forging and machining |
|
Material |
20CrMo;30CrMo;21CrMo10, 42CrMo, 35CrMo , etc |
|
Outer Diameter |
≤800mm |
|
Inner Diameter |
≤600mm |
|
Length |
≤8000mm |
|
Roughness |
Ra 1.6 |
|
QT Hardness |
240-280HB |
|
Tolerance (mm) |
0.1 |
|
Coaxiality (mm) |
1.1-1.9 |
|
Taper (mm) |
0~1 |
Description:
Pipe mould?is forging steel pipe mould.?Forging steel pipe mould is forged by hydraulic machine and machining on the lathe. It is applied to petroleum, water supply etc.
Making process: steel ingot-forging-rough machining-UT-boring-QT-2nd rough machining-enlarge hole-vibration aging-lightly boring-finished boring-oiling-packing-delivery
Applications:
Pipe mould can make various pipes, such as?petroleum and water supply?etc.
Contact Information:
Jiyuan City Kunyuan Forging Co., Ltd.?
Address: Huling, Chengliu Town, Jiyuan City, Henan Province, China?
Skype: lynne8805
