Home > Products > fiberglass > Woven Roving Fiberglass Fabric
Woven Roving Fiberglass Fabric
- shanghai
- T/T L/C D/P D/A Credit Card PayPal
You May Like
Product Details
| Brand Name | PRO-TECH | Model Number | EWR | |
| Application | Fiberglass Mesh Cloth | Weight | 40KG/ROLL | |
| Width | 35-3200mm | Weave Type | Plain Woven | |
| Yarn Type | E-Glass | Alkali Content | Alkali Free |
Product Description
Specifications
woven roving fiberglass:1)Low Fuzz
2)Fast wet-out&impregnation
3)Easy lay-up&air release
4)Excellent mechanical strength

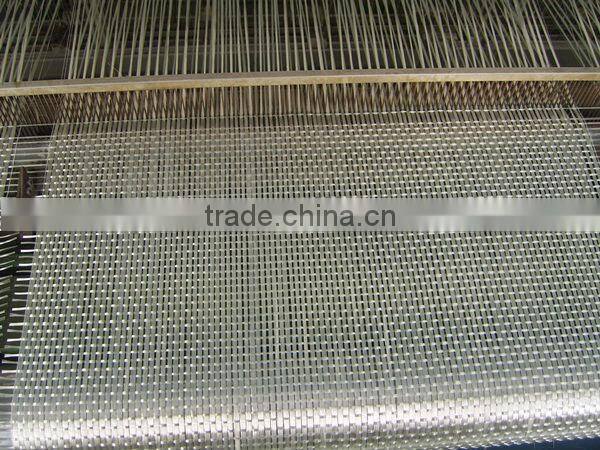

Woven roving fiberglass is made of direct rovings in Plain, Twill weave pattern.
The input rovings are designed to give controlled wet-out and excellent laminate properties.
It is compatible with Polyester, Vinyl ester and Epoxy resin and widely used in hand and machine production,
such as boats, vessels, plane and automotive parts, furniture, sports and other areas.
If customer prefer Woven Roving to be compatible with Epoxy resin, should indicate clearly when enquiry
or place order. Other specifications are available on customer request.
Type
| Glass | Weight(g/m2) | Warp Tex
| Weft Tex
| Warp /Weft Density (ends/cm) | Weave
|
EWR200A | E | 200 | 136 | 136 | 7.0 x7.0 | Plain |
EWR200 | E | 200 | 200 | 200 | 4.6 x 4.6 | Plain |
EWR200B | E | 200 | 200 | 300 | 4.6 x 3.6 | Plain |
EWR270 | E/ECR | 270 | 300 | 300 | 4.6 x 4.1 | Plain |
EWR300 | E | 300 | 300 | 300 | 4.6 x 4.6 | Plain |
EWR300B | E | 300 | 300 | 600 | 4.6 x 2.7 | Plain |
EWR360 | E/ECR | 360 | 600 | 900 | 3.2 x1.9 | Plain |
EWR400 | E | 400 | 600 | 600 | 3.6x 3.2 | Plain |
EWR400B | E | 325 | 300 | 600 | 4.6 x 3.0 | Plain |
EWR500 | E | 500 | 1200 | 1200 | 2.2 x 2.0 | Plain |
EWR500T | E | 500 | 1200 | 900 | 2.2 X 2.6 | Twill |
UD500T | E | 500 | 68 | 2400 | 2.6x2.0 | Plain |
UD500L | E | 500 | 2400 | 300 | 1.8x2.0 | Plain |
EWR580 | E/ECR | 580 | 1200 | 1200 | 2.6 x 2.2 | Plain |
EWR600 | E | 600 | 1200 | 1200 | 2.6 x 2.4 | Plain |
EWR600B | E | 600 | 1530 | 1530 | 2.0 x2.0 | Plain |
UD600 | E | 600 | 2400 | 300 | 2.2 x 2.0 | Plain |
EWR720 | E | 720 | 2400 | 2400 | 1.6 x 1.4 | Plain |
EWR800 | E | 800 | 2400 | 2400 | 1.8 x 1.5 | Plain |
EWR800B | E | 864 | 2400 | 2400 | 2.0 x 1.8 | Plain |
EWR1000 | E | 1000 | 2400 | 2400 | 2.0 x 2.0 | Plain |
