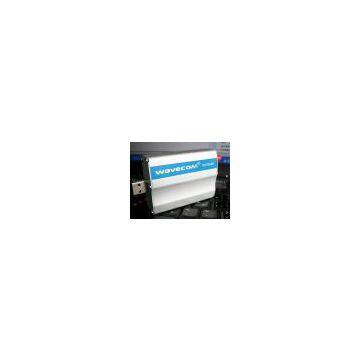

Original wavecome M1306B modem

Description
Wavecom GSM/GPRS Modem, Interface RS232

Specifications

Model

M - 1306B(original)

Design

Industrial Design, Aluminium Casing

Based On

Based on WAVECOM Module A-2406B

Band

900/1800 MHz, in compliance with ETSI GSM Phase2 + Standard

RJ11 For Phone

Internet

Wireless Access to internet

TCP/IP stack

YES

AT Commands

Remote control GSM 07.07 & 07.05

Interface

DB -15 PIN RS232 Interface

SIM Slot

3 Volt SIM Card slot

GPRS Class

GPRS Class 10

Transmitting Speed

Maximum Transmitting Speed 115.2 Kbps

DTMF

Yes

Work

Send SMS, Data, FAX, E-mail and Voice

Antenna

Male SMA connector

Output Power

900MHz 2W (Class 4)

1800MHz 1W (Class 1)

Input Voltage

6V to 36 V DC

Input Current

1A to 2 A

Standard Current

Standard Current 52mA

Working Current.

100 - 140mA

Working Temp.

(-20C to +55C)

Store.temp.

(-25C to +70C)

Overall Dimension

73*54.5*25.5mm

Weight

80g

Accessories

2 mounting plates;4PIN Power cable.

Voice Features

Telephony

Emergency Calls

Full Rate, Enhanced Full Rate and Half

Rate (FR/EFR/HR)

Dual Tone Multi Frequency Function (DTMF)

GSM Data Features:

Data circuit asynchronous, transparent and non transparent up to 14,400 bits/s MNP2, V.42bis

GPRS Packet Data Features:

GPRS Class 10, PBCCH support
Coding schemes: CS1 to CS4
Compliant with SMG31bis
Optional embedded TCP/IP stack
Short Messages Services features:
Text and PDU Point to point (MT/MO)
Cell Broadcast

GSM Supplement Services:

Call Forwarding
Call Barring
Multiparty Call
Waiting and Call Hold
Calling Line Identity
Advice of Charge
USSD
Closed User Group

Warranty

2 years from the day of delivery

Packing:

N.W.; 80G/PC;

G.W.; 0.42KG/PC

Quantity: 50PCS/Carton

Carton size; 56*39*29 cm

Tems of payment:

Paypal; western union; TT or L/C;20% deposit and pay off balance before delivery

Delivery time:

About 1-3 days after deposit be reached at us
