Single Fiber SM SC Fiber Media Converter , 100KM 10 / 100M 1310 & 1550 nm
- T/T L/C D/P D/A
- 7 days
You May Like
-
1310 & 1550 nm Single Fiber SM SC 10 / 100M Fiber Media Converter 120KM
-
10/100M Card Inserted Fiber Optical Media Converter One Sfp Ge Slot LFP Optional
-
Silver Single Mode Fiber Optic Switch Optical Switching Wall-Hung TYPE
-
Black Single Ethernet Fiber Optic Converter128K 10 / 100M UTP Connector
-
81 Fiber Optic Switch 100BASE - Fx 1 10 / 100BASE - Tx DF SM 1310nm 20KM SC
-
10/100/1000M Gigabit Sfp Media Converter With 256K External Power One SFP GE Slot
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Single Fiber SM SC Fiber Media Converter , 100KM 10 / 100M 1310 & 1550nm?

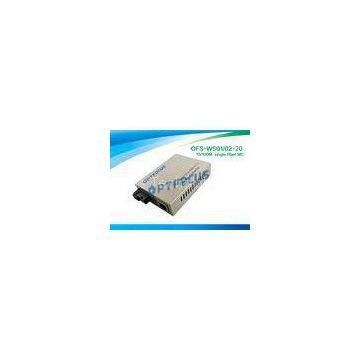

OFS-WS01/02-100
10/100M?Singlemode Single Fiber Media Converter
OFS-WS01/02 series 10/100M?Singlemode Single Fiber Media Converter can convert Optical－Electric Ethernet signals between 10/100M?UTP interface (TX) and?100M?optical fiber interface (FX).??It could extend traditional 10/100M?Fast Ethernet to the distance of?90km?through single optical fiber link.??It possesses stable performance and good quality by adopting latest IC from?USA?and?Taiwan. It must be used in couples,because the transmitted optical differs from the receive optical in wavelength. 6 Group LED indicated lights could fully monitor the working conditions of Converters. It is easy for users to observe network operation.
Fiber?Optic?Information
|
Type |
connector |
Max?distance |
Wavelength |
TX?power |
Sensitivity |
Link?Budget |
|
OFS-WS01/02-20 |
SC/FC/ST |
20km |
1310/1550nm |
-14~-6dBm |
-32dBm |
18dBm |
|
OFS-WS01/02-40 |
SC/FC/ST |
40km |
1310/1550nm |
-8/-9~-3dBm |
-35dBm |
27/26dBm |
|
OFS-WS01/02-60 |
SC/FC/ST |
60km |
1310/1550nm |
-5/-7~0dBm |
-37dBm |
32/30dBm |
|
OFS-WS01/02-80 |
SC/FC/ST |
80km |
1310/1550nm |
-3/-5~2dBm |
-37dBm |
34/32dBm |
◆ The transmission of a channel optical signals can be completed by single fiber. It has doubled in quantity of fiber data transmission compared with twin fiber type.?
? ? ◆ Auto negotiation function allows UTP port to auto select?10M?or?100M?and Full Duplex or Half Duplex
? ? ◆ The UTP port supports MDI/MDI-X auto crossover.
? ? ◆ Supporting 1600 bytes packet for management.
?◆ Internal circuit of prevented thunder could greatly reduce damage of converters caused ? ? ? ? ? ? ? ? ? ?by?thunderbolt induction.
? ? ◆ Indicator function of link fault (LFP): When optical fiber is at fault, the converter could stop all the link.
?◆ Converter working mode could be chosen: Store and forward switch mode, Modified cut-through ? ? ? ? ? ? ? switch mode, or Converter mode.
Technical?Specifications
| Operating?standards | IEEE802.3u,10/100Base-TX?and?100Base-FX |
| MAC?addresses?table |
1K |
| Data?buffer | 128K |
| Connectors | UTP?Connector:?RJ-45,?10/100Mbps;??Fiber?Connector:?SC,?100Mbps |
| Cable | UTP:?Cat.?5?UTP?cable?(the?max?distance?up?to100m) |
| Fiber?(?Singlemode) | 8.3/125,?8.7/125,?9/125,?10/125μm(the?max?distance?up?to?90km) |
| Flow?Control |
Full?Duplex:?IEEE802.3x Half?Duplex:?back?pressure |
Order?Information
|
Model |
Product?description |
|
OFS ? WS01/02? -xx |
10/100M?Singlemode?Single?Fiber?Converters?must?be?used?and?orderd?in?couples.? One?set?of?WS01?must?be?connected?with?another?set?of?WS02?for?using.? WS01?transmitted?optical?wavelength?1310nm,?receive?optical?wavelength?1550nm;? WS02?transmitted?optical?wavelength?1550nm,?receive?optical?wavelength?1310nm.?? The?max?distance?of?fiber?is?up?to?20,?40,?60,?80?,100,120km.??XX?is?the?amount?of?distance. |
