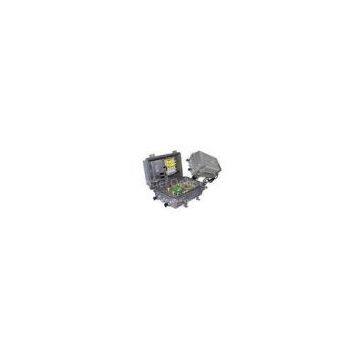

862Mhz Outdoor CATV Optical Node SC / APC With Return Path , 1100nm - 1600nm

Brand Name	SOFTEL.OEM		Place of Origin	China
Model Number	SR812R

Delivery Time:About 7 days
Certification:CE,ISO9000,RoSH

862Mhz Outdoor CATV Optical Node SC / APC With Return Path , 1100nm - 1600nm

Softel SR812R FTTx 45/87 ~ 750/862Mhz 2 Output Fiber Optical Node, 1MW or 2 MW Outdoor CATV Optical Node with Return Pat

Quick Detail:

Brand Name: Softel Model Number: SR812R Item Name: SR812R Two Way Optical Receiver Frequency Range: 45/87~750/862Mhz, 45~1000Mhz Receive Optical Power: -5~+2dBm Propose Use Range: -3~+1dBm Wavelength: 1100 ~ 1600nm Connector Type: FC/APC, SC/APC or Customized Fiber Type: Single mode Optical Return Loss: ≥45dB Power Voltage: AC(150~265)V Return Path: YES SNMP: Optional Optional Return Frequency: 1MW or 2 MW Optic Node Dimension: 210(L)x105(W)x60(H)

Description:

Based on plenty of experience about CATV HFC network optical fiber transmission equipment, we developed SR812, SR812B, SR814, SR814B series field optical receiver which is two-way optical receiver; They are mainly used in long-distance optical fiber transmission of TV image signal, digital TV signal, telephone voice signal and data (or compressed data) signal. We are innovating the product technology, rebuilding the line structure and Improving the process quality since we developed the first CATV optical receiver successfully in 1995; The current WR series optical receiver are not only of the lead position in domestic level regarding line technique, but also the same as imported product regarding technological quality; We have developed a variety of different models for users to choose models.

PHILIPS,PHOTON or E-O PIN optical detector with high sensitivity are used as the part of photoelectric conversion; Import PHILIPS or MOTOROLA push-Pull amplifier module etc. with low noise are used as the forestage of RF amplifier; import? PHILIPS? or MOTOROLA RF multiplier amplifier module etc. are used as output stage. GaAs amplifier module will be used if you need. Built-in add-in (reservation) reverse return optical transmitter component are useful for open reverse return channel. There are plug-in duplex filter, plug-in fixed equalizer, fixed attenuator, plug-in output splitter, eighth order optical power indication, scientific and rational line detection port in it to make it more convenient to debug. There are cast aluminum waterproof housing, switching power supply with high reliability, strict anti-lightning system to ensure it can work steadily in the field. Configure Chinese standard network management responder, easy access to the network management system.

Specifications:

Items	Unit	Technique Parameters
SR812/SR812R
Forward Path
Optical Parameter
Received Optical Power	dBm	-5 ~ +2
Recommended Range	dBm	-3 ~ +1
Optical Return Loss	dB	> 45
Optical Receiving Wavelength	nm	1100 ~ 1600
Optical Fiber Connector Type		FC/APC,SC/APC(Or specified by the user)
Optical Fiber Type		Single-mode
Link Performance
C/N
