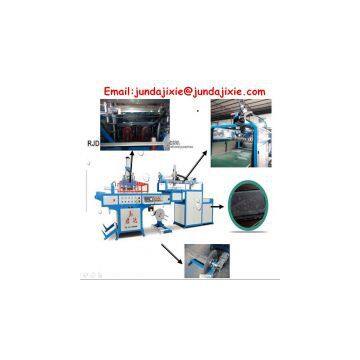

Automatic Plastic Thermoforming Machine

RJD-515*580Q model automatic plastic thermoforming machine

Technology Application

1.Plastic sheet such as PS,PVC,PET,BOPS,HIPS.

2.RJD-320A machine combine the pneumatic,machinical and PLC together.

3.The machine has the function of sheet sending ,heating,forming,cwith one process.

4.It has the advantages that installing and operation easily,running stable,low consumption,high efficience.

Normal working speed around 2-6second/cycle.

5.It is the best choice for the middle and joiner plastic packaging suppliers.

6.It is an automatic machine.

The moulds and the parts of the machine

Mould

1.With the blades on each mould that can make the machine cut sheets automaticly.

2.The depth of the blades around 5cm ,so it can be polished many times instead of changing moulds.

3.The shape and the size of the moulds can be made  according to your need.

Main techonlogy parameters:*

Forming area

515×580mm

Maximum forming height

100mm

Thickness range of sheet

0.1-1mm

Air flow

2.5m3/min

Heating plate power

12Kw

Mould plate heating power

4.8kW

Air pressure

0.7Mpa

Max.sheet roller diameter

710mm

Water consumption

10(Liters/min)(10-12°C)

Power

AC380V±15V 50/60Hz

Weight

2500KG

Dimension(L×W×H)

2750×1410×2150mm

Products

1.The machine can produce products like food container,trays,bowls,lids and other industry packing.

2.The products widely used for food grade boxes,fast food boxes,snack tray,

supermarket tray,medicine tray,oral liquid tray etc.

Company information

Name:Ruian Junda Machinery Co., Ltd. (the original Ruian Junda Machinery Factory)

Location: located in Ruian City, Zhejiang Province South coast industrial zone district offices

Tangtou [Ryan Bridge (that is, Feiyun River Bridge) south]

Speciality: professional manufacturer of plastic packaging machinery company

Resources:with a number of highly qualified researchers and staff

operation system:with the design, development, production, Installation and service a complete  operation system.

 The core concept:create the perfect service to the community

Company Spirit:follow the "use of technology, innovation is the soul, quality-oriented, excellence, service users, perfect, "

Service:the quality, with advanced equipment and technology, scientific management, production and customer satisfaction products.

Our services*

1.samples will be first making drawing for customer checking and confirmation then starting mould production ,

machine quotation based on FOB Ningbo Port.

 2.Installation and Start-up: 1 or 2 technicians will be assigned to coordinate installation, commissioning and training,

cost for flight and suitable accommodation & food will be charged additionally. for cup machine noromally one week and cup line will be two weeks

Terms of Payment: 40% advance payment by T/T upon signing the contract.60% balance by the T/T before shipment.

Delivery time:  30 days after deposit reached.

Warranty:12 months limited warranty. Starting from the date of machine arrival buyer's place excluding wear parts.
