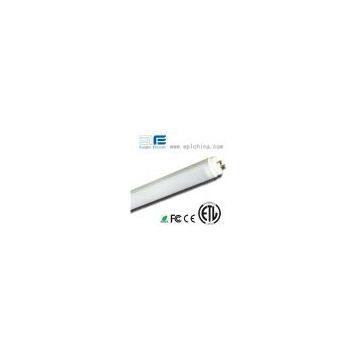

T8 smd led tube

FOB Price

Negotiable / Unit

10 Units(Min.Order)

Supply Ability 5000 Unit / Units per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin

China

Product Description

1.Energy saving, environmental friendly
2.span life: 50,000 hours
3. 3 years warranty
4.CE & RoHS,FCC certification

Our LED tubes are made up with special different view angles mixing lighting design, T8 specs, inner high efficiency constant current driver, with less degradation and 50000hour lifespan replacing T8,T10 fluorescent lamp,brighter than fluorescent lamp,better than most similar product.

Features of the Products:

1. No RF interference

2. Electric wave resistant

3. Energy saving up to 65%. high intensity

4. Good light quality and good heat dissipation

5. Special different view angles mixing lighting design

6. New inner high efficiency (90%) constant current driver, with heat protection system, can work under unstable voltage

7. Special circuit design, each LED work separately, avoiding the single broken LED influence problem

Optical Specifications:

Part Number:	EP-T8TLW2AH360S	EP-T8TLW3AH360S	EP-T8TLW4AH360S
Lumens:	1800-2300lm	1800-2000lm	1400-1600lm
Luminous Efficacy:	85~100 lm/W	85~100 lm/W	85~100 lm/W
Color Temperature:	≥7000 K	6000~6700 K	3800~5200 K
Luminescence Index:	0.75-0.85	>0.75	0.60-0.65
Beam Angle:	110°
Lumen:	≤4.5%@1,000hours

Electrical Specifications:

Input Voltage:	90-260V AC
Power Consumption:	24±0.5W
Lighting Source:	3528 SMD LED
LED Quantity:	360 pcs
Operation Temperature:	-20~40°C (-4~104°F)

Physical Specifications:

Dimension:	L1213*D30 mm
Weight:	443 g
Housing:	AL+PC
Socket Type:	T8
Work Environment:	Indoor use (applicable for dry environment)
