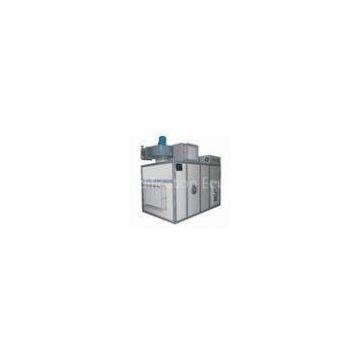

63.1kw High Efficiency Industrial Dehumidification Equipment with Silica Gel Wheel

63.1kw High Efficiency Industrial Dehumidification Equipment with Silica Gel Wheel

Quick Detail:
?

Style: Wheel adsorption

Desiccant Rotor: Sweden Proflute

Desiccant Rotor Material: Silica Gel Wheel

Rated Air Flow: 7000m3 /h

Rated Dehumidification Capacity: 50kg/h

Dehumidifier Quality: High

Installed Power: 63.1kw

Voltage: 380V, 3 phase, 50Hz or as customer required

Certification: ISO9001:2008???

Features: Economical, energy-saving
Usage: Air humidity control
?
?
General Description:
?
ZCS-7000 High Efficiency Air Dehumidification Machine removes moisture from air by using a desiccant-a material which easily attracts and holds water vapor. Desiccant dehumidifiers are especially well-suited to removing moisture from air at low temperature and low humidity.
?
In Fuda units, the desiccant is impregnated into a corrugated ceramic composite material which is formed into a wheel. Air passes easily through the flutes, contacting the desiccant. The wheel rotates slowly (6 to 10 rph) between two air streams. The incoming process air stream - the larger one - gives off its moisture to the desiccant. The process air is dry as it leaves the wheel. The humidity – laden wheel rotates slowly into a second, smaller air stream which has been heated.
?
This smaller exhaust air stream – called the reactivation air – warms the desiccant. The warmed desiccant gives off its moisture, which is then carried away by the reactivation air. The newly dried desiccant material is rotated back into the process air, where it absorbs moisture once again.
?
Leading by high-tech, Hangzhou Fuda Dehumidification Equipment Co., Ltd., with over 30 years experience on dehumidifier manufacture, provides air dehumidifying equipment with excellent performance for all kinds of industries.
?
?
Applications:
?

?
?
Competitive Advantage:
?

?
?
Specifications:
?
