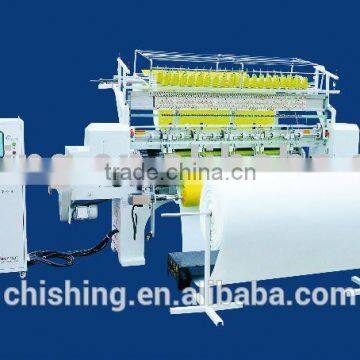

chishing digital control multi-needle quilting machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Guangdong, China
Brand Name	CHISHING	Model Number	CS64
Max Sewing Speed	1.6m	Weight	2700kg
Certification	CE	Warranty	one year
After-sales Service Provided	Engineers available to service machinery overseas

chishing digital control multi-needle quilting and sewing machine

CS64 Digital Control Quilting machine (lockstitch multi-needle quilters)

Main features:

This quilting machine Adopting digital control program.
Saddles and rollers driven by Panasonic servo devices.
The revolution of the spindle controlled by Panasonic frequency conversion control devices.
Large number of built-in quilting patterns for your choice.
Easy and quick pattern design .
360 degrees and 180 degrees quilting
Tack and jump function included .
stitches between 2mm-6mm adjustable.
Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick
materials.
Simulation display of quilting.
Automatic needle raising and location brake system.
Olny except the casting parts the main other parts use imported materials.
This machine can be used to process theetc

SPECIFICATIONS AND TECHNICAL DATA :

Quilting width	64inch	Overall dimensions	2Needle row 360011001600mm 3Needle row 380012001650mm
Needle distance	25.4mm	Needle row distance	1-2:3inch 2-3:3inch 1-3:6inch
Net weight	2Row:2300kg 3Row:2600kg	Gross weight	2400kg 2700kg
Running speed	200-500r/m	Output	20-100m/h
Max.thickness	30mm	Max.pattern size	2 Needle Row (6inch by 6inch )(catercornered distance) 3Needle Row 12inch by 12inch
Voltage	380v 3 phrase	Power	3.5kw
X stroke	8inch (203.2mm ) 12inch(304.8mm)	Stitch length	2-6mm adjustable

APPLICATIONS:

Bedding covers ,blankets, apron ,oven mitt and hot-holders,sofa protectors etc.
