Quilting Machine

 Description

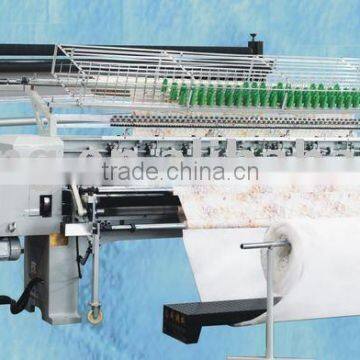

CSDB128"-3 digital control quilting machine
1. D: Digital control; B: Big shuttle (HQ10 Japanese shuttle )
2. 128": 128inch width (3251mm)
3. 3: Three needle row
4. Overall dimensions: 5600*1200*1650mm
5: Weight: 4500kg
6: Running speed: 200-500r/m
7: Needle distance: 25.4mm
8. Rating power: 6.2kw
9. Thickness: ≤30mm
10. Max. Pattern size: 12inch by 12inch
*This quilting machine Adopting digital control program.
*Saddles and rollers driven by Panasonic servo devices.

*The revolution of the spindle controlled by Panasonic frequency conversion control devices.

*Large number of built-in quilting patterns for your choice. It has saved  200 patterns for your choice and you can design by yourself also.

*Easy and quick make new designs.

*360 degrees quilting

*Tack and jump function included

*stitches between 2mm-6mm adjustable.

*Function of pattern compensation, an effective solution to the distortion of patterns when quilting thick materials.

*Simulation display of quilting.

*Automatic needle raising and location brake system.

*Function of automatic stop on breaking of thread(optional)

*Infrared sensors to guarantee the safety of the operator

*Function of automatic stop on breaking of thread(optional)

*Infrared sensors to guarantee the safety of the operator
