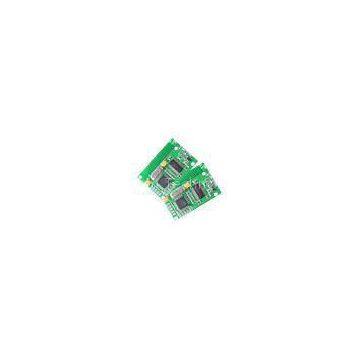

Micro Power 868Mhz 10MW RF Transmitter And Receiver Module 4 Channel

868Mhz,10MW Micro Power Wireless Telemetry Module Network Note Remote Controller JZX861

Quick Details:

? ? * Frequency:868Mhz,option of 433/915Mhz

? ? * Modulation: FSK

? ? * Transmit Power:?10MW

? ? * Interface:TTL

? ? * Distance:100-150m

? ? * Channel:4 channel

Technical?specification?of?JZX861:

? 1. FSK,Within the visual range,the reliable transmission distance can reach 100m;
?

? 2. Carrier frequency:433 MHz, options of 868/915MHZ or others;
?

? 3. 4 channels;Band rate:1200/2400/4800/9600/19200bps;
?

? 4.? Interface:TTL,Interface format:8N1/8E1/8o1;
?

? 5. Power:10mW,receiving current<10mA,transmitting current<30mA,Sleep current<1uA;
?

? 6. Power Supply:DC +2.8V ~ +3.6V or +3.6V ~ +5.5V;
?

? 7.? Size:38mm*25mm*6mm;weight:10g;
?

? 8. Inter-Communication Models: JZX861/JZX862/JZX863/JZX864/JZX866

Features:
?

1. Multi- channel
The standard JZ861 configuration provides 8 channels to meet the multiple communication combination mode of the user.
?

2. High speed wireless communication and Large data buffer zone?
When the RF baudrate is bigger than COM baudrate,allowing to transmit unlimited length data at one time,when the RF baudrate is smaller or equal to the COMs,allowing the transmission of 255 Bytes data.?
?

3. Intelligent data control and the user doesnt need to prepare excessive programs?
Even for semi duplex communication,the user doesnt need to prepare excessive programs,only receiving/transmitting the data from the interface.JZ861 will complete the other operations automatically,such as transmission/receiving conversion in the air,control,etc.
?

4. High reliability,small and light?
Single chip radio - frequency integrated circuit and single chip MCU are used for lessened peripheral circuits, high reliability,and low failure rate.?

Applications:

?*?AMR?Automatic?Meter?Reading

?*?Wireless?alarm?and?security?systems

?*?Home?automation

?*?Low?power?telemetry

?*?Wireless?conference?voting?system;

?*?Observation?and?predication?of?oil?well?and?hydrological?information;?? ? ? ? ? ? ??
