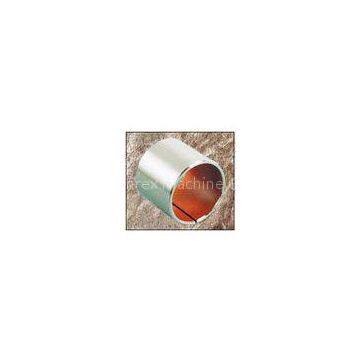

SF-1SS Stainless Steel Dry Sliding Bearing Self Lubricating Bushing for Marine Pumps

Stainless Steel Dry Sliding Bearing Self Lubricating Bushing SF-1SS for Marine Pumps??

Description:
?

1. PTFE with fibre 0.01~0.03mm
2. Stainless steel backing 0.7~2.3mm

Technical:

Load capacity: 100N/mm2 ?
Temperature:? -190°C ~+280°C ?
Speed limit: 2.5m/s ?
Friction coef(μ): 0.03~0.18 PV ?
limit(dry): 3.0N/mm2 .m/s PV ?
limit(oil): 40N/mm2 .m/s

Application

SF-1SS bushing is based on stainless steel back and spay-painted PTFE on the surface.It has good performance of anti-acid,anti-alkali,anti-salty liquid and can be widely used in chemical industry such as acid/alkali flow indicator,pumps,valves etc and also in the sliding position where anti-corrosion is a necessity mostly in marine industry .
?
?
Quality Control:

MMD-10 Friction&Wear Test:

? ? ?
?Packaging
?
1.?Anti-rust oil + plastic films or bag?+?carton and pallet

2. Per?customer\'s requirement
?
?
?Delivery

Picture show:

How to make an order?

1. Client confirms price, lead time, sample (if needed) .

2. Client sends 30% deposit (or other terms agreed) after receiving perform Invoice.

3. Client approves our production sample, and get the testing report if needed.

4. Client sends balance payment.

5. We arrange shipment and provide necessary documents and send copy of these documents.

6. We send B/L telex release the goods.

7. Client receives order parts and gives feedback on quality, service, and suggestion.

8. Quality warranty for 90 days after shipment.
