Electric Pedestrian Control Tripod Turnstile Gate With RFID Card Reader

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

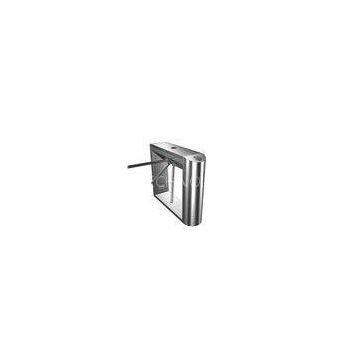

Semi automatic electric arc waist height tripod turnstile gate with RFID card reader

Introduction of Tripod Turnstile Gate:

RFID card reader?tripod turnstile gate model SN-TT03 can connect to any kinds of controller and various consumption devices. Different identification systems can be connected like ID card reader, IC card reader, fingerprint and Iris etc.

Applications of Tripod Turnstile Gate:

RFID card reader?tripod turnstile gate model SN-TT03?is mostly for?indoor usage (If used?outdoor, better use SS316 and?must with tent). Nowaday, more and more buildings use tripod turnstile for crowd control.

Features of Tripod Turnstile Gate:

Mechanical drive unit with solenoid locking mechanism eliminate the use of expensive electric motor and reduce maintenance cost. If arm rotated more than half, it will auto-rotate to the next idle position. If arm rotated less than half, it will auto-rotate back to the current idle position. Built in adjustable tensioner to control rotation force to minimize over rotation. Arm just need to be pushed lightly to rotate therefore even elderly or children are able to use the turnstile. Turnstile can be configured to be bi-directional or uni-directional. Housing is locked with special key to avoid tampering. Innovative and unique mounting surface ensures simple and convenient installation for system integrator. Can be used with variety of access control devices: IC / ID card readers, bar-code scanner, fingerprints, etc. (Access controller needed) Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically. The mechanism is equipped with an automatic regulated hydraulic buffer device. There is no noise and impact when running.

Product details of Tripod Turnstile Gate:

Specifications of?Tripod Turnstile Gate:

Item	Specification
Power?supply	AC220±10%V?50Hz/AC110±10%?60Hz
Power?consumption	40W
Access?device?input?voltage	Dry?contact?or?12V?electrical?level?signal? or?>?100ms?12V?impulse?signal,?driving?current?>?10mA
Motor	No motor
Max?flow?rate	25?to?30?person?per?minute
Arm?length	510mm
Working?temperature	-20°C~60°C

Cases of Tripod Turnstile Gate:

Why choose us:

1. Our Factory has 13?years OEM/ODM experiences in the line of access control turnstile and barrier.
2. Prompt delivery time. Usually we keep stock of standard model which ensure the prompt delivery.
3. We accept OEM/ODM orders to meet the requirements of clients.
4. Trial order is acceptable. Clients can buy sample and test it before bulk order.

5. Online technical support makes it carefree to be our business partner.

6. A variety of transportation for your choice. Sea shipment, air cargo or express, depends on your demand.

7. Factory can be visited on working days. Clients are warmly welcome to visit our factory.
