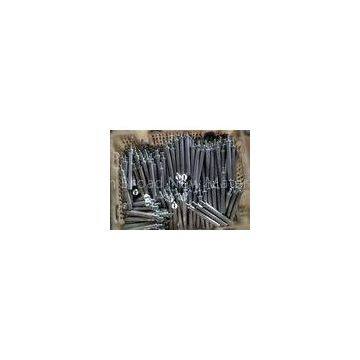

OEM ASTM Extruded Magnesium Anode Rod for waterboiler / heatexchanger / vapourater
- T/T L/C D/P D/A
- 7 days
You May Like
-
Smooth Surface Aluminium Master Alloy For improve magnesium product
-
Sacrificial bracelet anodes Cathodic Protection For Pipelines
-
Magnesium Condenser Anode / Maganesium Sacrificial anode for cathodic protection anti corrosio
-
Sand Blast Gun for Sandblasting Machine / Cleaning equipment
-
B type C type Sand Blast Gun Aluminum alloy Boron caride Content
-
High potential HP Sacrificial Magesium anode for corrosion control
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
OEM ASTM ?Extruded Magnesium Anode Rod for ?waterboiler / heatexchanger / vapourater ? ?Extruded Magnesium Anode Rod for Water Heater Product Introduction:
?? ?Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines. ?
? ? In addition to pipelines, magnesium anodes are often used to protect propane, water and chemical storage tanks, areas of ships and port facilities that are not in direct contact with sea water, power plants and irrigation systems.
Specifications:Standard : ASTM G-97
|
Chemical compositions of cast magnesium anode (%) |
||||
|
Element |
High potential |
AZ63B |
AZ63C |
AZ63D |
|
Al |
<0.01 |
5.30-6.70 |
5.30-6.70 |
5.0-7.0 |
|
Zn |
--- |
2.50-3.50 |
2.50-3.50 |
2.0-4.0 |
|
Mn |
0.5-1.30 |
0.15-0.70 |
0.15-0.07 |
0.15-0.70 |
|
Si (max) |
0.05 |
0.10 |
0.30 |
0.30 |
|
Cu (max) |
0.02 |
0.02 |
0.05 |
0.10 |
|
Ni (max) |
0.001 |
0.002 |
0.003 |
0.003 |
|
Fe (max) |
0.03 |
0.005 |
0.005 |
0.005 |
|
Others each |
0.05 |
--- |
-- |
--- |
|
Others total |
0.30 |
0.30 |
0.30 |
0.30 |
|
Mg |
Balance |
Balance |
Balance |
Balance |
|
Electrochemical Properties of cast magnesium anodes |
||||
|
Item |
Open-circuit Voltage |
Close-circuit Voltage |
Actual capacitance |
Current efficiency |
|
(-V) |
(-V) |
(A.h/g) |
(%) |
|
|
High Potential |
1.70-1.75 |
1.57-1.62 |
≥?1.100 |
≥?50 |
|
Low Potential (AZ63) |
1.50-1.55 |
1.45-1.50 |
≥?1.105 |
≥?50 |
|
Note: Open and Close-circuit voltage is relative to Saturated Calomel Electrode (SCE) |
? ? The corrosion of metal in salt or fresh water or in soil can be prevented by the use of galvanic anodes in a cathodic protection system. ?Magnesium anodes are used in such systems, most commonly to protect underground gas, oil and water pipelines. ??
Company Brief Introduction:We are a professional anode supplier over 16 years ,mainly supply:
* Zinc anodes (ASTM B418-95 US MILL 18001K)
* Al-Zn-In anodes (GAIII)
* Magnesium anodes ( ASTM-G97)
* High silicon cast iron anodes ( ASTM-A518-3,BS1591)
? ? ?Our anodes are shipped worldwide especial main to North America, Asia etc., around 5000mt per year. Our goods are regularly tested by independent third party lab in USA to keep anode continuous high quality. Our plant owns raw material resources ore, so we can supply very good price with service for you.
? ? ?We can also accept customized anodes with your logo according to your drawing !
