Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Product Description

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

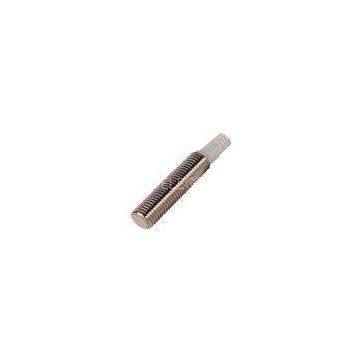

E2E Intensity Inductive Type Proximity Sensor High Reliability , Magnetic Proximity Switches

Technique parameter

Series	E2E-#
Mounting	Shielded
Model	DC	NPN	NO	E2E-X4E1
NC	E2E-X4E2
NO+NC	?
PNP	NO	E2E-X4F1
NC	E2E-X4F2
NO+NC	?
Two-wire	NO	E2E-X4D1
NC	E2E-X4D2
AC	Two-wire	NO	E2E-X4Y1
NC	E2E-X4Y2
Three-wire	NO+NC	?
Detection Distance	2mm ± 10%
Setting Distance	0-1.6mm
Delay Distance	Below 10% of detection distance
Detection Object	Magnetic metal (the detection distance decreases if nonmagnetic metal)
Standard Detection Object	Iron 12121mm
Response Frequency	DC: 0.5kHz? AC:25Hz
Supply Voltage	DC type: DC12-24V(6-36V) impulse(P-P) below 10%
AC type: AC110-220V(36-250V) 50/60Hz
Voltage Resistance	AC1000V 50/60Hz 1min between charging part and shell
Voltage Influence	Within ±15% of rated supply voltage range when at rated voltage and within ±10% of detection distance
Current Consumption	N.P: below 13mA, D: below 0.8mA, A: below 1.7mA
Control Output	N.P: below 300mA, D: below 200mA, A: below 400mA
Circuit Protection	N.P.D: reverse connection protection, surge absorption,? short circuit protection. A: surge absorption
Ambient Temperature & Humidity	During operation or storage: -30-+65°C?(no freeze, no frost)
During operation or storage: 35-95%RH
Temperature Influence	Temp range -30-+65°C, at +23°C?and ±15% detection distance
Temp range -25-+60°C, at +23°C?and ±10% detection distance
Insulation Resistance	Above 50MΩ (DC500 megger)between charging part and shell
Material	Shell:?brass nickel plated? ? ? ? Detection part: ABS
Protection Grade	IP67 (IEC specification) ?

Features:

1 .?Power supply reversal connection protection; short-circuit protection,can directly connect with PLC
2 . Long service life, high reliability and strong resistance property to environment
3 .?The housing intensity improved
4 . IP67 protection structure

Model explanation of proximity switch
?
?LM ? ? ?18 ? ? ? ??30 ? ? ?05 ? ???N ? ? ? ?A ? ? ? ?□ ? ? ?/ ? ?L
—— ? ——? - ?—— ? —— ? —— ? —— ? ?—— ? ? ?——
? 1 ? ? ? ? 2 ? ? ? ? ? 3 ? ? ? ?4 ? ? ? ?5 ? ? ??6 ? ? ? ? 7 ? ? ? ? ??8
?
? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ?

Switch category	Output form
? Lm: Inductance type Cm: Capacitance type Sm: Hall type Am: Safety Explosion-proof type Xm: Mimic Linear type Hm: Reed type Ru: Ultrasonic type ??	N: Three-wire Dc NpN Output P: Three-wire Dc PnP Output L: Two-wire Dc Output ??: Ac Two-wire Output J: Relay Contact Output Np: NpN+PnP Double Output
Outward appearance code	Output state
? □: ?Cylinder type F□: ?Angular Colum Type And Plane Installation Type ?	? A: (no) normally Open (no) ? B: (nc) Normally Close (nc) C: (no-nc) normally Open-Normally Close (no+nc) Mu: Mimic Voltage ? ? Mi: Mimic Current Mui: Voltage+Current ?
Working voltage	Subsidiart functions
? 30: 6-36VDC ?310:5-24VDC ?320: 12-60VDC 330: 10-30VDC ?340:10-55VDC ?350:10-60VDC 360: 5-36VDC ?20:90-250VAC ?210:24-250VAC 220: 380VAC40:12-240VDC/24-240AC 50: Special voltage ?	T: with aviation connector Y: water pr
