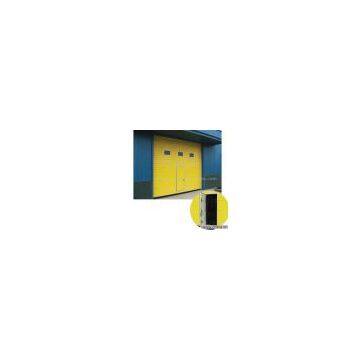

Sell Industrial Door

Model No.:
Product Origin:China
Brand Name:Panan
Price Terms:FOB Shanghai
Payment Terms:T/T in advance, L/C at sight
Certification:
Description:Product Name: Industrial DoorPlace of Origin: ChinaSpecifications: 1) Door plant material: double layers, zinc-plated 2) Core department material: polyurethane 3) Dimensions of door plant: a) Width: 2,440mm - 12,000mm b) Height: 2,130mm - 7,300mm 6) Thickness of door plant: 40mm 7) Coefficient of thermal resistance: R=14. 96, 18. 25 8) Surface polyester of door plant: white, almond color, brown (other colors can be arranged) 9) Track: 2" (51mm) and 3" and (76mm), both adopt 1.5 - 3mm thick hot zinc-plated stencil plate 10) Standard rail, low rail, high to promote rail, vertical to promote rail and oblique canopy promote rail 11) The balanced system of external button reed, the working life of button reed is up to the job circulation 50,000 - 100,000 times 12) The U vinyl sealing strip of the bottom prevents frostbite, damp proof and waterproof 13) The side and the top take the trough sealing strip to seal 14) Small door of pass way: many kinds of sizes available 15) Small observation window: many kinds of sizes available 16) Fire-retardant grade: A Technical parameters of the opening machine of industrial door: 1) Voltage: AC 220V or AC 380V 2) Output power: 370W, 550W, 750W, 1kW 3) Max. strength: 1,800N, 3,600N, 5,400N, 7,200N 4) Protection of electrical machinery 5) Transmission way: drive the button reed pole or roller chain gear wheel transmission directly 6) Control method: manual, electronic, remote control, reaction 7) Safe protector: induction installation of infrared ray (selection), the angry sense is safe (selection) 8) The fittings that can be added: IC card, radar reaction, ground magnetic ring 9) Lose electrical power and meet an urgent need to fit: pull it before shutting the switch door of the device 10) Receive the device remotely: roll yards of 433MHz, effective distance of 30m 11) Speed of opening: 12 - 20cm/s 12) Max. height: 10m 13) Journey: machinery type
