Home > Products > Active RFID Reader > Omni directional 2.45GHz Active RFID Reader with 50m reading distance
Omni directional 2.45GHz Active RFID Reader with 50m reading distance
- T/T L/C D/P D/A
- 7 days
You May Like
-
UHF Directional 2.45GHz RFID reader for parking system and toll station
-
High efficienct logistic management 4-channel UHF RFID Reader module
-
Long Range Tablet Ultra High Frequency UHF RFID Reader Portable Android 4.2.1
-
Vehicle and asset tracking 2.45GHz Active RFID Card , Radio Frequency Identification Card
-
ISO 18000-6C Protocol 4 Port Antenna UHF RFID Reader Module With 840 960mhz Impinj R2000
-
Handheld Outdoor waterproof UHF RFID Reader With Android System
Product Details
| Brand Name | NFCase | Place of Origin | China | |
| Model Number | AIA-1 |
Product Description
Certification:CE,FCC,MSDS
Omni directional 2.45GHz Active RFID Reader with 50m reading distance
Typical Applications of 2.45GHz Active RFID reader F3411
Intelligent transportation management
Asset identification,tracking and checking management
Orientation, tracking and checking people in coal mine etc
Position monitor management for baby, prisoner, older psychotic etc.
|
Technology specifications?of 2.45GHz Active RFID reader F3411 |
|
|
Operating frequency |
2.4GHz~2.5GHz ISM |
|
Antenna |
Connect 1 antenna through SMA |
|
RF power range |
-18.0dBm~0.0dBm( adjusted by 32 grade ) |
|
Receiving sensitivity |
-90.0dBm |
|
Operating mode |
FHSS or fixed frequency(set by software) |
|
Modulation |
GFSK |
|
Reading range |
0~50m (Standard matched antenna SR-24A02R, omni-directional) 0~100m ( Antenna SR-24A12T, directional) |
|
Anti-collision |
Up to 500 tags read simultaneously |
|
Buffer capacity |
2000 tags data |
|
Communication speed |
250kbps, 1Mbps, 2Mbps(adjustable) |
|
Communication interface |
RS-232, RS-485, USB, Wiegand26/34/42/50, Ethernet |
|
Input and output |
1 triggering input, 2 relays output |
|
Optional function |
2 relays, CAN, RSSI, ID match function, Offline function and Time function |
|
Power supply |
AC input: 100~240V, 50/60Hz 1.2A |
|
Product size |
134mm*99mm*34mm |
|
Packing size |
284mm*275mm*85mm |
|
Gross weight |
0.79kg |
|
Net weight |
0.25kg |
|
Working temperature |
-20℃~+70℃ |
|
Storage temperature |
-40℃~+85℃ |
|
Accessories |
Standard matched antenna, Power adapter, Power cable, RS-232 cable, USB cable, Ethernet cable |
|
Working status indication |
Buzzer, LED indicator |

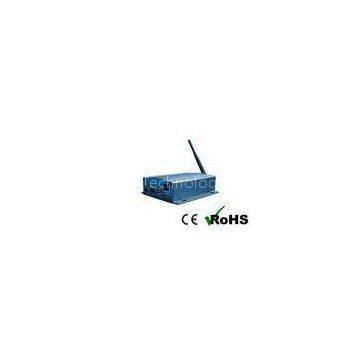

Pictures of?2.45GHz Active RFID reader F3411
