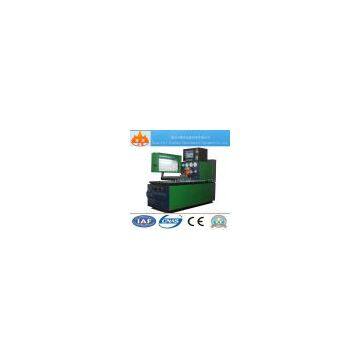

JD-II diesel fuel injector pump test bench

JD-D diesel fuel injection pump test bench

Characteristics

This series test bench adopt high quality frequency conversing device. speed can be preset.15’ true color LCD display. Installed industrial embedded computer motherboard. Computer and digital meter display. Super-large digital tube display RPM, count, two sides button, convenient puter and digital meter display RPM, oil temperature, advance angle,gears.

Functions

1.Measurement of each cylinder’s delivery at various rotation speeds

2.Cecking of each cylinder’s injection time with static state

3.Check of speed governors

4.Checking of the electric magnetic valve of distributor pumps

5.Checking performance of the pneumatic speed governors

6.Checking of the pressure compensators

7.Measurement of the reflux delivery of distributor pumps

8.Measurement of the internal pressure of the distributor pumps body

9.Gas membrane governor negative pressure performance

10.Checking of the sealing of fuel injection pump body

parameters

1.Operation position: computer and manual device

2.Cylinder:45cc (two sets)

3.Volume of oil tank:60L

4.Temperature automatic control:402oC

5.Test oil filtering unit:5μ

6.DC supply:12v/24v

7.Digital display: rotation speed, count, fuel quantity, advanced angle

8.Machinery meter display: high-low fuel pressure, VE internal pressure, air

pressure

9.Fuel supply pressure: low 0-0.6mpa, high 0-6mpa

10.VE1 pressure:0-0.16mpa, VE2 pressure :0-1.6mpa

11.Supply air pressure: +pressure 0-0.3mpa, -pressure 0-0.04mpa

12.RPM preset: 10 gears,0-4000rpm

13.Power: 380v/50hz(on request)

14.Total size: 2100*900*1600mm

15.Net weight:850kg

16.Center height:125mm

17.Flywheel inertia’s moment:0.8kg/m2

18.Output power:7.5-45kw
