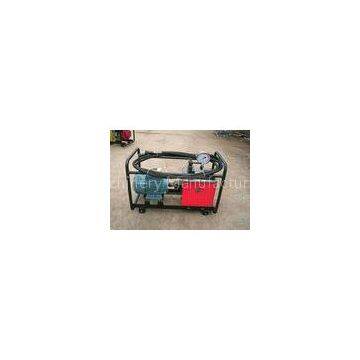

Double Acting Oil Pump High Pressure Pump With Electric Engine For Overhead Line Transmission

Double Acting Oil Pump High Pressure Pump With Electric Engine For Overhead Line Transmission

Use and Characteristics

Double speed high performance pumps, built in 10000Psi pressure overflow valve, can ensure the maximum

flow when maximum pressure.Standard of can see an oil window, observe the location of oil, with the normal operation that assures machine;Equipped with low noise pure aluminum alloy enclosure motor?and light weight, convenient to move.

Can choose to equip long range wire to control a switch, easy to long-distance to leave an operate.Use the following Suggestions 200 T of hydraulic cylinder

Application

For a variety of wire, strand crimping, reinforcement, cutting jobs, it is the construction of power transmission line construction indispensable work tool. Change the hydraulic pump to work as an independent source, also used in other forms of hydraulic actuators, and versatile.

Technical specification below for your reference:

DAILY?MAINTENANCE

The?life,reliablity,and?safety?of?the?tool?is?dependent?on?proper?maintenance.Clean?all?surfaces?including?head,die?seat,ram,and?body.

Inspect?for?wear?and?damage.Worn?or?damaged?parts?may?malfunction?during?operation.

All?parts?must?be?replaced?with?new?parts?if?signs?of?wear?or?damage?are?evident.

Keep?Lable?Set?clean?and?legible.Replace?decales?when?necessary.

Manufacturer?recommends?regular?testing?for?proper?pressure?and?operation.

Test?at?least?every?6?months,test?more?often?under?heavy?usage.

GENERAL?INFORMATION

IMPORTANT:Extreme?caution?should?be?used?to?prevent?the?entry?of?this?material?into?th?unit.Wipe?off?all?couplings?and?fittings?before?connecting?to?unit.Be?sure?that?any?pump?to?be?used?with?the?compression?tool?is?clean?and?free?of?dirt?and?contamminants.

PERIODIC?MAINTENANCE:Occasionally?lubricate?die?stop?plunger?assemblies.Use?of?a?molybdenum?disulfide?grease?is?recommended.Pull?pin?and?pivot?pin?assemblies?should?also?be?cleaned?and?lubricated?to?prevent?sticking.

Oil?LEAKAGE:A?small?amount?of?seepage?from?the?piston?and?pump?seals?is?normal?and?necessary?to?aid?in?the?lubrication?of?the?moving?parts.Excessive?leakage?may?indicate?the?need?for?seal?replacement?and?should?be?performed?only?by?an?authorized?reliable?service?center

Diagram

Practical Application
