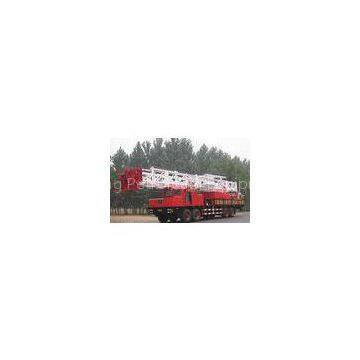

Self propelled ZJ20 Truck Mounted Drill Rig / Drilling Equipment With API Standard

FOB Price

USD $4 - $5 / Ton

1 Ton(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	NFCase		Place of Origin	China
Model Number	AIA-1

Delivery Time:3-5 days
Certification:CE,FCC,MSDS

API Standard, ZJ20 Truck-mounted Oil Drilling Rig / Drilling Equipment

Specifications

1. Drilling depth: (4 1/2\'\' drilling pipe) 2000 m?
2. Max hook load: 1470KN 330700 (pounds)?
3. Drawworks input power: 650HP?
?

Classic model for intermediate and shallow wells with reliable and stable capacity.

12×8 reinforced chassis, fast transportation and good cross-country capacity.

Hydraulic disk brake for drawworks is optional.

Air-controlled water-cooling disk auxiliary brake for drawworks is optional.

Emergency power system is optional.?

?
Technical Specifications:
?

Product type	ZJ20
Structure type	Self-propelled
Drilling depth(4 1/2 DP)	6600ft
Workover depth (3 1/2 DP)	18000ft
Max. hook load	350000lbs
Hook speed (ft/s)	0.66-4.59?
The mast height	115ft
Engine\'s model	CAT3412B DITA
Engine power	650hpor660hp
Model for hydraulic transmission box	CLBT6061
The transmission mode	Hydraulic +mechanicl
Traveling system	4×5
The main wireline diameter	11/8in
Model for hook block	YG135/ YG160
Model for swivel	SL135/ SL160
Model for rotary table	ZP175
Model for chassis/drive way	XD60/12×8
Approaching angle/leave-taking angle	26°/28°
Min. ground clearance	12 1/4in
Max. gradient	26%
Min. turning radius	125ft
Overall dimension (ft)	67×9×15
Weight of the main unit	130000lbs
Weight of accessories	53000lbs
