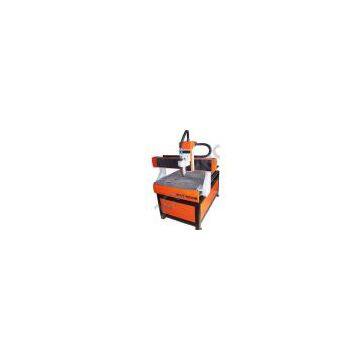

HIGH SCALE CNC MACHINE JCUT-6090B

HIGH SCALE CNC Router JCUT- 6090B

Applications:

Advertisement engraving, advertisement cutting, stone processing Cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment molding processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.

Features:

1) Machine body: whole cast iron

2) Guideway: XYZ-axis use linear guideway

3) Driving mode: Ball screw

4) Work dimensions: 600 x 900 x 150mm

5) Body dimensions: 800 x 1200 x 1200mm

6) Z-axis working area: 150mm

7) Max. Feeding height: 90mm or bigger

8) Cut thickness of material: ≤30mm

9) Max. Speed: 6,000mm/min

10) Working speed: 0 - 5000mm/min

11) Mechanical precision: 0.01mm

12) Software: type 3 software, Artcut software, Artcam software

13) Max. Power consumption: 1.6kW

14) Power source: 220v/50Hz, 110v/60 Hz

15) Driver type: stepper motor (xyz -sxis use 57BYG motor)

16) Memory: 128MB or without

17) Spindle: 1.5kW variable speed, water-cooled motor

18) Spindle speed: 0 - 24,000rpm

19) Blade diameter: Ф 3.175mm, 4mm, 6mm

20) Control system: (NCSTUDIO) or DSP (USB interface)

21) Command: G code, u00, mmg, plt

22) Running circumstance temperature: 0 - 45 ° C

23) Relative humidity: 30% - 75%

24) Packing dimensions: 1200 x 1500 x 1500mm

25) Net weight: 240kg

26) Gross weight: 300Kg
