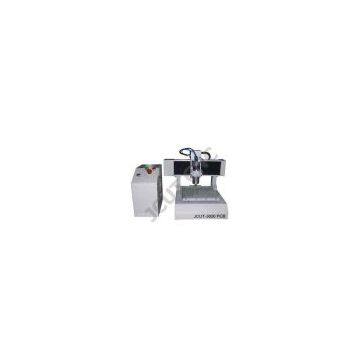

PCB CNC ROUTER JCUT-3030PCB

PCB CNC Router (JCUT-3030)

The most boring ting to do is to make the PCB. Though now most people give the boring affairs to the PCB factory, yet it is indeed too long to wait for about three days or a week. New inspiration for a design is usually given up because of the trouble. While a PCB making machine can finish making a piece of PCB only in a few minutes, which can let your inspiration instant come true.


Main features:

1. High efficiency: It merely needs a few minutes to make a piece of PCB.

2. Accuracy: The min error of numerical control drill hole less than 1mil (0.025mm).

3. Automatism and convenience: Simple software hardware installation, operate the manufacturing process by striking the function keys of operation system.

Main technical parameter:

Machined surface: Single/double

Worktable board (mm):300X300

Max.Speed:8000mm/min

Working speed: 0-4000mm/min

Working accuracy: 6-8mil

Least line diameter and least line spacing:6 -8mil

Drilling depth: 0.02 ~ 3mm

Drilling diameter: 0.4 ~ 3.175mm

Drilling holes: 40-100/min

Repeat Accuracy: 0.025mm

The least error of Data control drill less than 1mil (0.015mm)

Operation system: WIN2000/XP /VISTA

Means of communication: PCI or RS232

Function Request: Protel PCB document can be directly put in.(gerber)

Spindle speed: 24000rpm

Spindle power: 800W

Power supply: 110v60hz/220v50hz

Volume: 750X750X750mm

Gross: 90KG
