Woodworking cnc router(JCUT-1530B)-

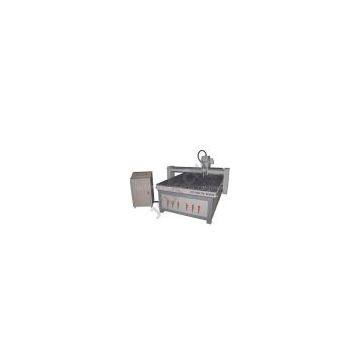

Wood CNC Router JCUT-1530B

Applications:

Can be used on advertisement engraving, advertisement cutting, stone processing cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment mold processing cutting, sign and mark manufacturing cutting,

Acryl board processing cutting, stamp cutting

Features: optional(vacuum table and dust collector)

1) Machine body: whole cast iron

2) Guideway:XYZ-axis use linear guideway

3) Driving mode:Rack

4) Work dimensions: 1,500mm x 3000mm x 80mm(

5) Body dimensions: 1,950mm x 3700mm x 1,650mm (with bracket)

6) Z-axis working area: 80mm(or 150mm)

7) Max. Feeding height: 120mm or bigger

8) Cut thickness of material: ≤40mm

9) Max. Speed: 25,000mm/min

10) Working speed: 0 - 8,000mm/min

11) Mechanical precision: 0.01mm

12) Software: type 3 software, Artcut software, Artcam software

13) Max. Power consumption: 3kW

14) Power source: AC 220/50/60Hz (or 110v/60HZ)

15) Driver type: stepper motor(XZ-85BYG, Y-axis use two 85BYG motors)

16) Memory: without or  (DSP)

17) Spindle: 2.2kW(Ф100mm) variable speed, water cooled motor (3kW,or  bigger

18) Spindle speed: 0 - 24,000rpm/min

19) Blade diameter:Ф3.175mm, 4mm,6mm (or 8mm,10mm,12mm, 12.7mm)

20) Control system: (NCSTUDIO) or DSP (USB interface)

21) Command: G code, u00, mmg, plt

22) Running circumstance temperature: 0 - 45°C

23) Relative humidity: 30% - 75%

Packing:

Pack dimensions: 1,750 x 3500 x 1,750mm

Net weight: 1100kg (with bracket)

Gross weight:1300kg
