Mining Hydraulic Cone Crusher 90kw with Single cylinder for crushing iron ore copper ore

Mining Hydraulic Cone Crusher 90kw with Single cylinder for crushing iron ore copper ore?

Hydraulic Cone Crusher Specifications:

Hydraulic Cone Crusher Brief Description:

1. Name:hydraulic cone crusher

2. Model:GPY100

3. Quality:national quality control standards

4. Similar to symons, minyu standard

Hydraulic Cone Crusher Introduction:

White Lai GPY series of single-cylinder hydraulic cone crusher is our company designed by introducing and absorbing foreign advanced technology, on the basis of optimal design of a high-energy production of single-cylinder hydraulic cone crusher. Laminating machine uses design principles and energy combines with optimized crushing chamber, a light weight, large capacity, better product shape, wear parts and low cost.

Hydraulic Cone Crusher Working Principle:

Process is broken between the cone and the eccentric rotation of the moving cone completed. The horizontal axis of the crusher through triangle belt driven by a motor, the horizontal shaft driven by eccentric gear, forcing the eccentric shaft eccentricity cycle movement. Feed into the crusher crusher through the upper part of the mouth to feed, gravel crusher discharge through the lower discharge port.

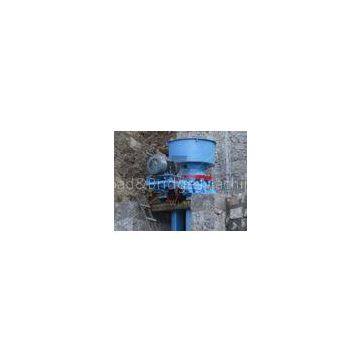

Hydraulic Cone Crusher

?Advantages&Characteristic:

1. Hydraulically adjustable discharge opening, combined with user-friendly design, not only saving labor, and easy, and can achieve stepless adjustment, and with high controlled. .
?

2. Single cylinder hydraulic adjustment spindle, cone, overall lift to regulate the size of the nesting population of purpose and resolve the side of the rack tilt cylinders and damage the host problem.

?3. If foreign body in crushing cavity , pressure regulating system automatically starts, conduct relief protect nesting population automatic zoom, allowing foreign body is discharged through the discharge port machinery, the purpose to protect the equipment.

?4. Quick replacement of wearing parts, joints between the bowl and the cone fit solid, reliable, no irrigation filling supplements, eliminating the need for culling and replacement parts are filled with every fill material time.

?5. With low hydraulic operating pressure, the hydraulic system operating pressure of the entire device is relatively low (not a high-pressure hydraulic systems) pressure and a host of smaller hydraulic parts, hydraulic system is more durable and stable.
?

6. Installation convenient transportation, because of the models advanced design, highly efficient, and its relatively small size and weight, which is lifting, transportation, replacement parts, maintenance requirements are lower.

Hydraulic Cone Crusher?Guarantee And After-sales Service:

1. Two years guarantee for main machine, excluding wearing parts

2. Experienced technicians guidance is available

3. 24 hours technical support by e-mail, by phone.

4. Use-friendly English user manual

5. Engineers could be dispatched to the quarry site, if requested by customer.

Hydraulic Cone CrusherApplications:

This kind of crusher can be extensively used in metallurgical industry, building industry, road construction industry, chemical industry, diluted hydrochloric acid industry and are suitable for crushing hard and mid-hard ores and rocks, such as iron ore, copper ore, lime stone, quartz, granite and sandstone.

Hydraulic Cone Crusher:
