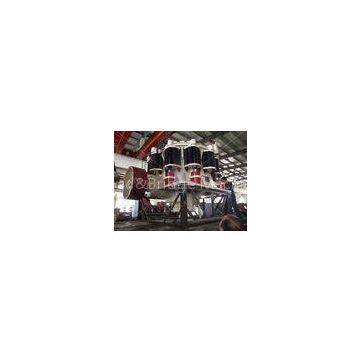

560 rmp Stone Cone Crusher 37.8t Medium Cavity 185 kw - 220 kw

560 rmp Stone Cone Crusher 37.8t Medium Cavity 185 kw - 220 kw?
?

Cone Crusher Specifications:

Cone Crusher Brief Description:

1. Name:cone crusher
2. Model:WLM1500
3. Quality:national quality control standards
4. Similar to symons, minyu standard

Cone Crusher Introduction:

White Lai offer?WL Series combined cone crusher series. This type of cone crusher is our advantage in the combination of domestic and foreign similar products on the basis of the national patent, launched with the new product. Hydraulic structure readjustment, adjust the size of the discharging port.The machine body for cast steel structure, high stress points in overloaded parts set with reinforced. The drive shaft with taper roller bearings, at both ends by driving by overloading bevel gear completed, housings skeleton type sealing ring to prevent oil leakage.

Cone Crusher Working Principle:

During operation, the motor drives the eccentric shaft shell to turn around through a horizontal axle and a pair of bevel gear. The axle of crushing cone swings with the force of eccentric shaft shell so that the surface of the crushing wall is close to the roll mortar wall from time to time. In this way, the ores and rocks will be pressed and crooked and crushed.

Cone Crusher?Advantages&Characteristic:

1. ?High strength and firm structure: ? ? ?

The main body of the cone crusher is box shaped cast steel structure, whose heavy loading areas are reinforced by hard steel.
?
?
?

2. ?Finite element design:

This crusher is designed with the help of modern CAD technology. All series models have gone through the FEM technology analysis,which ensures all stress levels inside within appropriate range and guarantees the high strength structure and stable performance of cone crusher.?

3. High reliability and practicability originates from excellent design:

This cone crusher adopts tapered roller bearing to replace the old style horizontal shaft copper sleeve at both ends of the horizontal drive shaft and thus largely improves its rotation speed.Dust proof ring is assembled between the mantle core and the seat liner. The maze O-ring is full of lubrication oil.The dust proof ring is supported by the spring in the seat liner so as to prevent dust from entering.The machine adopts electric automatic lubrication system that connects the main motor.If the pressure is insufficient or the temperature is too high,the main motor stops immediately to prevent the main engine from damage.

?4. High capacity, low cost and easy maintenance:

Our machine’s fine crushing chamber shape increases the effective crushing surface.The machine has the capacity to process large feed size,increase 1/3 production capacity Comparing with other cone crushers and can produce fine particles and cubic products. The mantle core and the crushing chamber are processed by digital control CNC machine,which makes the replacement of wearing plates quick and easy,eliminates the need to fill epoxied resin and improves the operational efficiency. Traditional cone crusher with the ancient crushing chamber structure,has limited crushing surfaces,low production and produces more elongated and flaky particles content.Epoxied resin needs to be filled between the mantle cone the crushing surface,which makes the replacement difficult,increases the failure rate and machine halt time and causes unstable performance of the machine.?

5. Hydraulic clear cavity:

Hydraulic cylinder device can achieves iron release and quick chamber clearing by its hydraulic cylinders,The recommended jacking distance is more than 75mm.

6. Hydraulic adjustment of mechanism:

The machines is installed with hydraulic pressure adjustment deviceso as to quickly adjust the discharge gap and clear the crushing chamber and therefore reduce the time of machine halt.

Cone Crusher?Guarantee And After-s
