Mini cnc router machine with rotary axis desktop cnc engraving machine

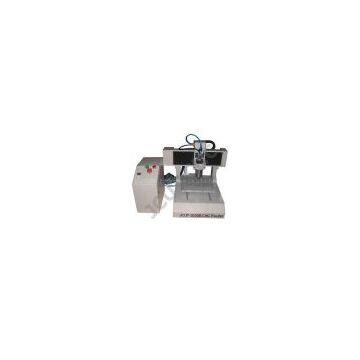

Mini CNC Router with rotary axis --(JCUT-3030B)
Features: Distinctive feature-work table is moving back and forth
Optional part: Rotary axis
1) Machine body: Whole cast aluminum
2) Work dimensions: 300 x 300 x 45mm
3) Body dimensions: 600 x 600 x 600mm
4) Z-axis working area: 45mm
5) Max. Feeding height: 60mm or bigger
6) Cut thickness of material: ≤ 20mm
7) Max. Speed: 8000mm/min
8) Working speed: 0 - 3000mm/min
9) Mechanical precision: 0.01mm
10) Software: Type 3 software, Artcut software, Artcam software
11) Max. Power consumption: 1100W
12) Power source: 220V/50Hz or 110V/60Hz
13) Driver type: Stepper motor
14) Spindle: 800W variable speed, water-cooled motor
15) Spindle speed: 0 - 24, 000rpm
16) Blade diameter: 3.175mm, 4mm, 6mm
17) Control system: Ncstudio
18) Command: G code, u00, mmg, plt
19) Relative humidity: 30% - 75%
20) Pack dimensions: 750 x 750 x 750mm
21) Net weight: 90kg
22) Gross weight: 110kg

Applications:
Can be used for advertisement engraving, advertisement cutting, stone processing, Cu and AL molding, mold manufacturing, wood processing, craft manufacturing, light box cutting, building mold cutting, indoor decoration cutting, light equipment mold processing, sign and mark manufacturing, acrylic board processing, as well as stamp cutting and PCB cutting.
