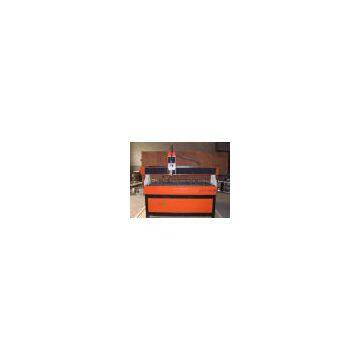

NC RouterJCUT-1212B (47''x47'')

(with CE certificate , FDA)

1 Features:

1) Machine body: whole cast iron

2) XYZ-axis use linear guideway

3) Driving mode: 3 ballscrew XYZ with tear at two extremity

4) Work dimensions: 1,200mm x 1,200mm x 200mm

5) Body dimensions: 1,500mm x 1600mm x 1,500mm (with bracket)

6) Z-axis working area: 200 mm

7) Max. Feeding height: 200mm

8) Cut thickness of material: =40mm

9) Max. Speed: 6,000mm/min

10) Working speed: 0 - 4,000mm/min

11) Mechanical precision: 0.01mm

12) Software: type 3 software, Artcut software, Artcam software (with order send software via FTP or email  to prepare computer)

13) Max. Power consumption: 1.8kW

14) Power source: AC 220V/50Hz

15) Driver type: stepper motor(XY-85BYG, Z-57BYG motor)

16) Memory: without or  (DSP)

17) Spindle: 1.5kW(?80mm) variable speed, water cooled motor

18) Spindle speed: 0 - 24,000rpm/min

19) Blade diameter: Complete series of the 12 Collets ER20B DIN 6499/B (2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 13 mm) + Wrench for nut ER20B

20) Control system: (NCSTUDIO) or DSP (USB interface)

21) Command: G code, u00, mmg, plt

22) Running circumstance temperature: 0 - 45degree

23) Relative humidity: 30% - 75%

24) Spindle speed control with software

25) control card with lpt port and optional 4 axis pin

26) Electric wire super clean

Packing:

Pack dimensions: 1,700 x 1700 x 1,600mm

Net weight: 600kg (with bracket)

Gross weight: 700kg
