CNC Rotuer Machine CNC Engraving Machine With Low Price

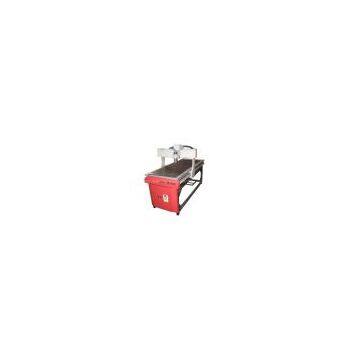

CNC Router JCUT-60150A  ( 23.6''x59'' )

1.Features:

1) Machine body: whole cast iron

2)Guideway:XYZ-axis use cylindrical guideway

3)Driving mode:ball screw

4) Work dimensions: 600mmx 1500mm x 70mm

5)Body dimensions: 800 x1, 800 x 1,300mm (with bracket)

6) Z-axis working area: 70mm

7) Max. Feeding height: 90mm or bigger

8) Cut thickness of material: ≤30mm

9) Max. Speed: 6,000mm/min

10) Working speed: 0 - 5000mm/min

11) Mechanical precision: 0.01mm

12) Software: type 3 software, Artcut software, Artcam software

13) Max. Power consumption: 1.6kW

14) Power source: AC 110/220/50-60Hz

15) Driver type: stepper motor(xyz -sxis use 85BYG motor)

16) Memory: 128MB or without

17) Spindle: 2.2kW variable speed, water-cooled motor

18) Spindle speed: 0 - 24,000rpm

18) Blade diameter: Ф3.175mm, 4mm,6mm

19) Control system: (NCSTUDIO) or DSP (USB interface)

20) Command: G code, u00, mmg, plt

21) Running circumstance temperature: 0 - 45°C

22) Relative humidity: 30% - 75%

Packing:

Packing dimensions: 900 x 1,950 x 1,300mm

Net weight: 350kg (with bracket)

Gross weight: 460kg

Applications:

Can be used for advertisement engraving, advertisement cutting, stone processing Cutting, Cu and Al molding cutting, mold manufacturing cutting, wood processing cutting, wood door manufacturing cutting, craft manufacturing cutting, light box cutting, building mold cutting, indoor decoration cutting, wave board processing cutting, light equipment molding processing cutting, sign and mark manufacturing cutting, acryl board processing cutting, stamp cutting.

2.Bonus free accesories

• cutting tools--20pcs
• collets--4pcs
• clamps--10pcs
• spanner--2pcs
• water pump--1pcs
• software----1pcs
• connetions cables--some
• user's manual--1pcs

3.optional items

rotary axis----$300

vaccum table--$300

dust collection system--$500

4.Freight:

by sea.please pay attention to our free shippment just to your seaport,not to your door.we also can send the machine to your door if you request,so please tell us your detailed address and zip code,meantime,we will charge the extra inland freight.

Any questions,please feel free to contact me,

Hope a lot of business can be concluded between us!
