Home > Products > New product > Trailer Motorhome Rear View Camera System with Trailer Hook Connector and Spiral Cables,Free Operating Voltage DC11-32V

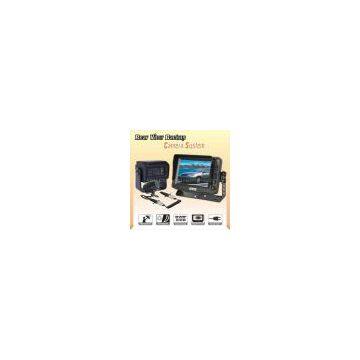

Trailer Motorhome Rear View Camera System with Trailer Hook Connector and Spiral Cables,Free Operating Voltage DC11-32V
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Veise | Place of Origin | China | |
| Model Number | DF-515T2 |
Product Description
|
PRODUCT SPECIFICATION
|
|
|
Rear View Camera
|
|
|
MODEL:DF-8015
|
MODEL:DF-8083
|
|
1/3" Color CMOS Camera
|
1/3" Color CCD Camera
|
|
Horizontal Resolution:330TV Lines
|
Horizontal Resolution:420TV Lines
|
|
Usable lllumination:3Lux(F1.4)
|
Usable lllumination:0Lux(Built ln 6 IR LEDs)
|
|
Lens: 2.8mm/F2.0
|
Lens:2.9mm/F2.0
|
|
150 degree wide angle
|
IR LED working distance:5m
|
|
Water resistance:IP66,Alloyed shell,Waterproof for outdoor use
|
|
| Video Output:1.0Vp-p75Ω | |
|
Power supply:DC12V/150mA from monitor
|
|
|
|
|
|
5 Inches Digital Screen TFT LCD Rear View Monitor (Model:SP-527)
|
|
| 5" Digital Screen Color Rear View Monitor with Removable Sun Visor | |
| Display Resolution: 640(H) X 3RGB X 234(V) dot | |
|
Color System:PAL/NTSC (AUTO)
|
|
|
OSD MENU Separately Set Each Camera Trigger Priority
|
|
|
OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30"
|
|
|
OSD MENU Separately Set Each Camera Mirror/Normal image
|
|
| Manual and Automatic Switch Display Mode | |
|
Support Two Camera Video Inputs:1.0Vp-p75Ω
|
|
|
Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65
|
|
|
Brightness (cd/m2): 300
|
|
| Contrast ratio: 500:1 | |
|
Back-light:Single LED
|
|
| Operating temperature: -20℃ to +70℃ | |
| Storage temperature: -30℃ to +80℃ | |
| Power Suply: DC11~32V | |
|
External dimensions:L*W*T(150X118X23)mm (without mounting)
|
|
|
Weight Approx: 279g
|
|
|
Product Accessories
|
|
| Trailer Hook Connector, Spiral Cables, Monitor bracket, | |
|
15m Electrical connecting cable,Auto cigarette lighter,Manual
|
|
