Quade Monitor Camera System
Negotiable
/ Piece
1 Piece(Min.Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Veise | Place of Origin | China | |
| Model Number | DF-736741 |
Product Description
|

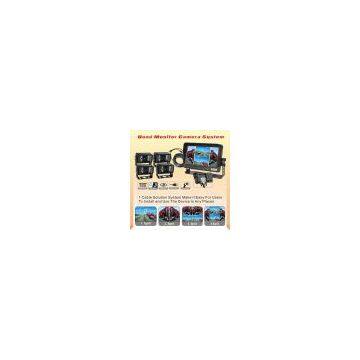

Quad Monitor Camera System Product Specification
|
|
Aluminum Shell Waterproof IR Color CCD Camera(MODEL:DF-8073*4)
|
|
Image Type: 1/3 Color SHARP CCD
|
|
Horizontal Resolution:420TV Lines
|
|
Effective pixel:NTSC:510(H)X492(V);PAL:500(H)X582(V)
|
|
Usable Illumination : 0Lux ( Built in 18pcs IR LED's for Picture Support in the Dark)
|
|
Free viewing angle: 130°
|
|
Waterproof: IP66 |
|
Shockproof: 10G |
|
Video Output:1.0Vp-p75Ω
|
| Automatic Heating Below +10oC |
| Power supply:DC12V from Reversing Monitor |
|
Dimensions: 74(W) x 49(H) x 57(D) mm (without mounting) |
|
7 inches Digital Screen TFT LCD Color Quad Monitor (Model:SP-737)
|
| 7" Digital Screen TFT LCD Color Quad Monitor with Removable Sun Visor |
|
Single View/Split View/Quad image View Selectable
|
|
OSD MENU Separately Set Each Camera Trigger Priority
|
|
OSD MENU Separately Set Each Camera Reversing Image Delay Time 0-30”
|
|
OSD MENU Separately Set Each Camera Mirror/Normal image
|
| Manual and Automatic Switch Display Mode |
| 1 Cable Solution System Make It Easy For Users To Install and Use The Device In Any Places |
|
Color System:PAL/NTSC (AUTO)
|
|
Display Resolution: 2400(H) X 480(V) dot
|
| Support Four Camera Inputs:1.0Vp-p75Ω |
| Wide view angle(CR>10):(up/ down): 45/65 (left/right): 65/65 |
|
Brightness (cd/m2): 300 ( Automatically Adjust Environment by According) |
| Contrast ratio: 500:1 |
| Back-light:Single LED |
| Operating temperature: -20℃ to +70℃ |
| Storage temperature: -30℃ to +80℃ |
| Free Operating Voltage DC11-32V (1 Cable Solution) |
|
External dimensions:L*W*T(185X124X48)mm(without mounting)
|
|
Weight Approx: 379g
|
|
Product Accessories
|
|
Monitor bracket, 15m cable*4, Electrical connecting cable solution, Auto cigarette lighter.
|
