MC3 solar power connector
- 10000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | REOO | Place of Origin | China | |
| Model Number | RO-2 |
Product Description

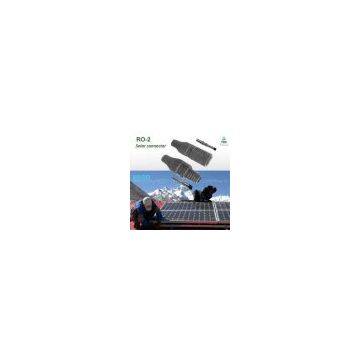

MC3 solar power connector
1.Water proof and dust proof
2.Simple,quick installation
3.suitable to MC3 connector
4.TUV approved
main feature:
1.Connector adopts touch and insertion of reed with inner-knob type.
2.Autolock equipment of male and female points enable connection more easy and reliable.
3.Popular figure suit most of field installation
4.Simple on-site processing
5.Mating safety provided by keyed housings
6.Mutiple plugging and unplugging cycles
7.Accoomodates PV cable with deferent insulation diamaters
Techincal data
Mode: RO-2
Insulation material: TPE/PA
Rated current: 30A
Rated voltage: 1000V
Test voltage:6KV(50Hz,1Min)
Contact material:copper, tin plated
Contact resistance:5mΩ
Protection degree: IP67
Safety class: Ⅱ
Flame class:UL94-V0
Insertion force: ≤50N
Withdrawal force:≥50N
Ambient temperature range:-40℃~+90℃
Suitable cable: 2.5~6.0mm2 AWG14/12/10
Pin dimensions: φ3.0mm
